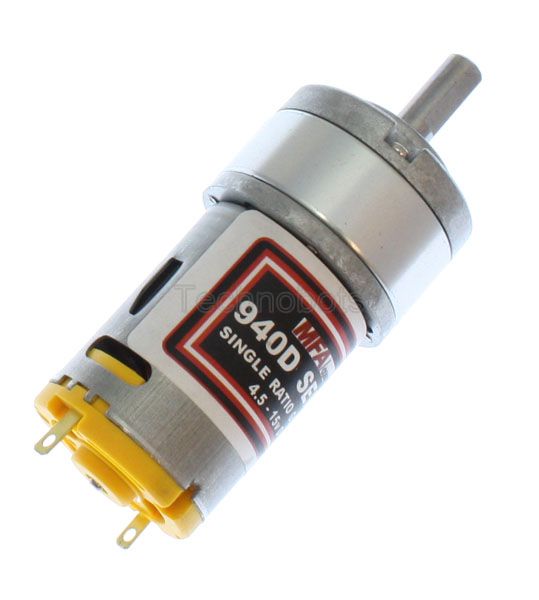

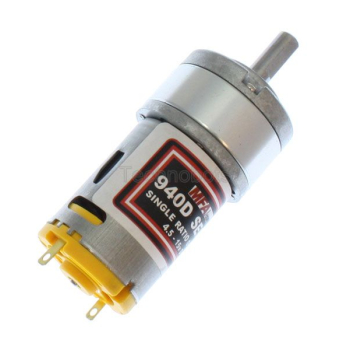

940D51 Planetary Geared Motor 5:1

£15.78
(£18.94 UK, incl VAT)
Price in points: 3156 points
1450-060
167 g
In Stock
+ −
Add to wish list

MFA Como Drills 940D51

Output rpm at:

4.5V = 700
6V = 1000
9V = 1600
12V = 2150
15V = 2800
Output theoretical torque (g/cm) at 12V, max efficiency = 326.5, stall torque 2008



1450-060 to 065 Motor Performance
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
12 0.155 0 11000   No Load
12 0.837 65.3 9821 61.85 max 6.21
12   417.6 Stall 0   0
