5A 18mm Lever Microswitch V4

£0.43
(£0.52 incl VAT)
Price in points: 86 points
1610-040
In stock
+

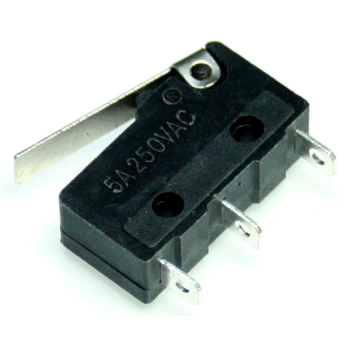

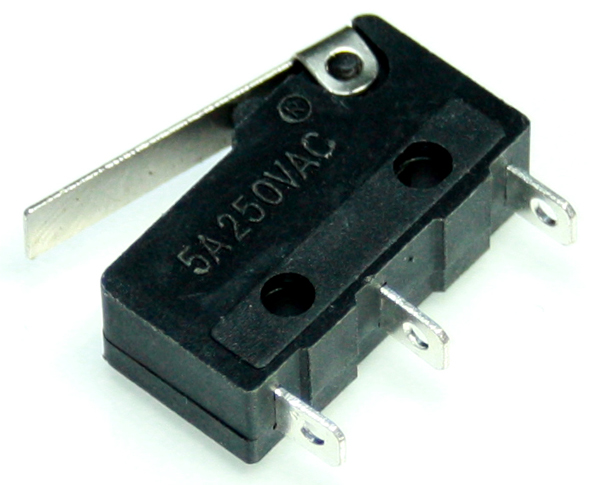

A standard V4 body sozed microswitch rated at 5A at 250Vac maximum.

This microswitch has a lever actuator of 18mm in length.

Specification

Mechanical

  1. Operating Force: 60~70gf;
  2. Life: ≥ 500,000Cycles;
  3. Pins: 3 solder tags which could also be PCB mounted

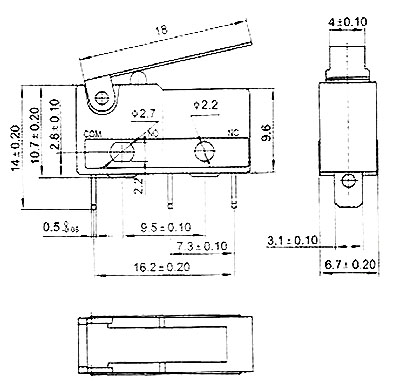

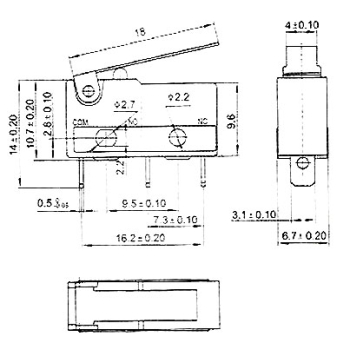

  4. Size of Body: 20mm x 6.2mm x 10.8mm (LxWxH);

Electrical:

  1. Rated V/I: 250VAC/5A;
  2. Contact Resistance: ≤30mΩ;
  3. Insulation Resistance: ≥100MΩ;
  4. Withstand Voltage: 1500VAC for 1Min;
