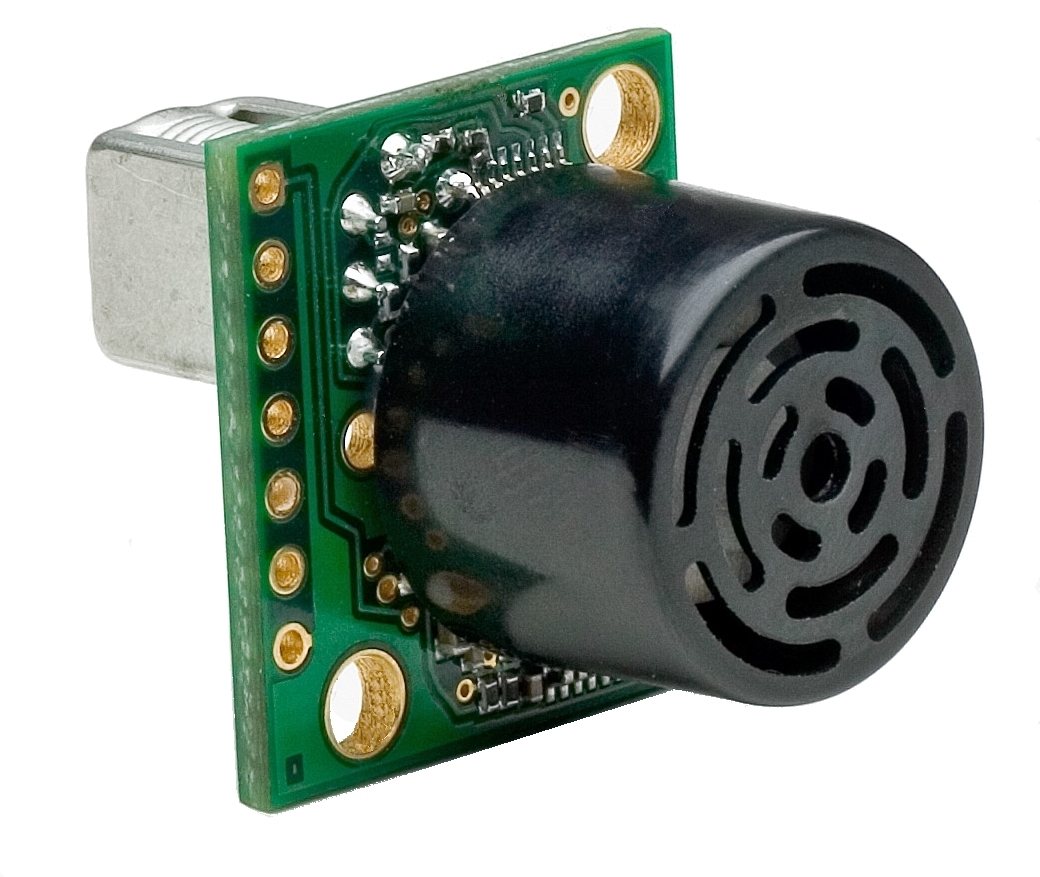

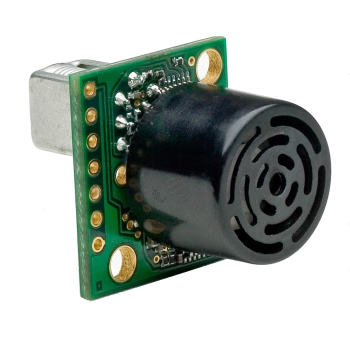

XL-MaxSonar - EZL0, Maxbotix MB1260

£47.81
(£57.37 UK, incl VAT)
Price in points: 9562 points
3801-840
8 g
2 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £43.03 £39.20

The MB1260 XL‑MaxSonar‑EZL0 offers the widest and most sensitive beam pattern of any indoor sensor we currently offer. This makes the XL-MaxSonar-EZL0 an excellent choice wherever wide beam detection, reliable people detection, or reliable small obstacle detection are required. In addition to detecting small objects, the XL-MaxSonar-EZL0 can also detect large targets to the extended range of 1068 cm (420 inches)

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

The MB1200 is a version of this sensor with shorter maximum range.

Component Overview

  • Resolution of 1 cm
  • 10Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no dead zone, objects closer than 20 cm range as 20 cm
  • Operates from 3.3-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure

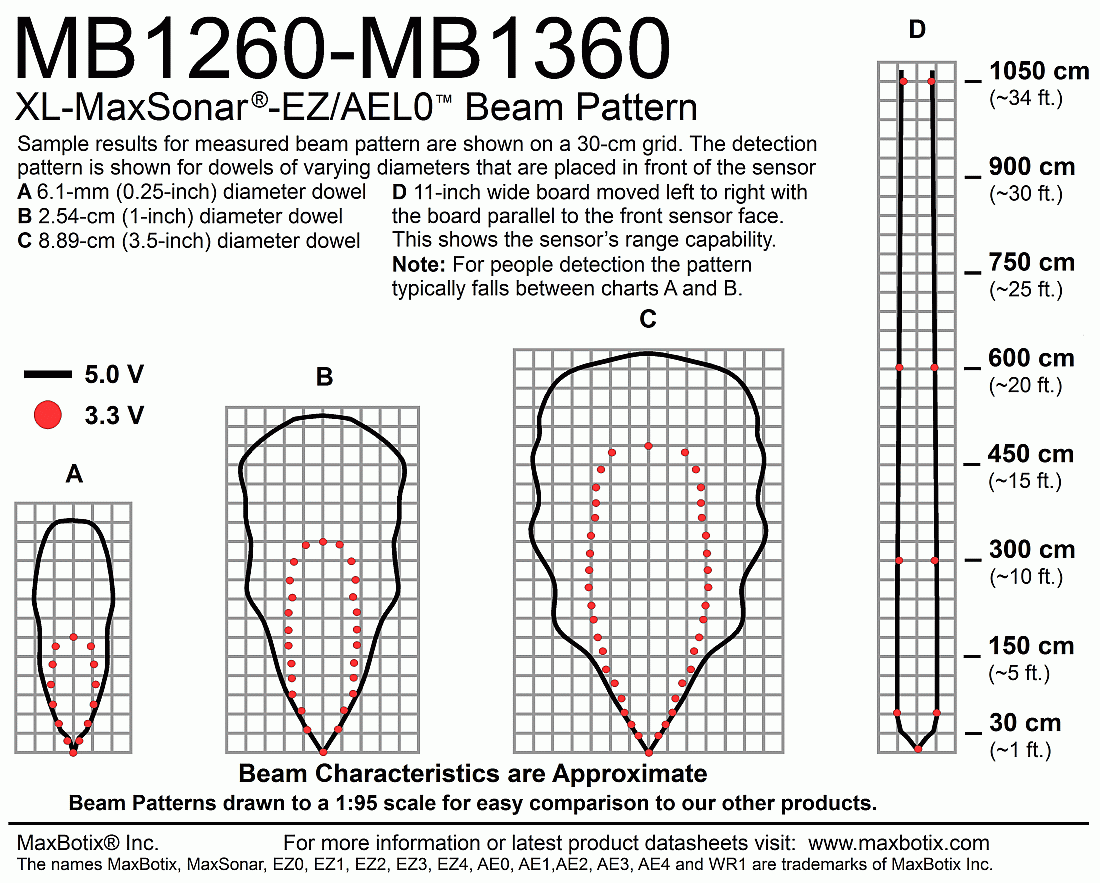

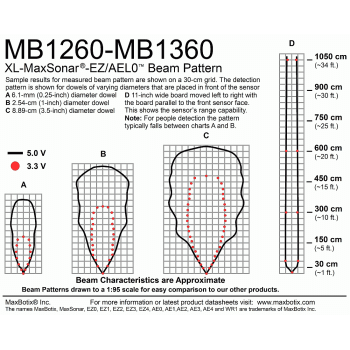

  • Widest and most sensitive beam of our XL-MaxSonar-EZ sensors
  • Maximum range of 1068 cm (420 inches)
  • Hardware gain of 4000
  • Long range, wide detection zone for small targets

For more information including tutorials, see our MaxBotix Home Page

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB1260
Manufacturer:
Maxbotix
