XL-MaxSonar - EZ3, Maxbotix MB1230

£34.76
(£41.71 UK, incl VAT)
Price in points: 6952 points
3801-813
8 g
2 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £31.28 £28.50

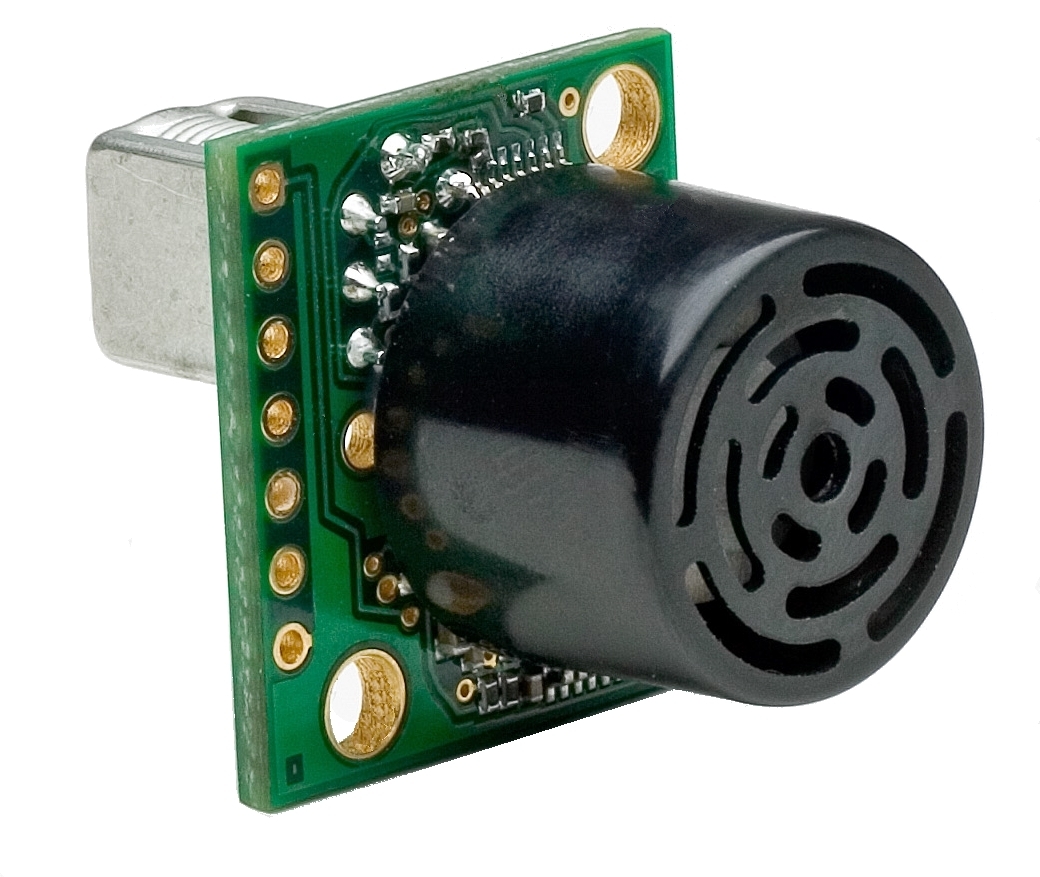

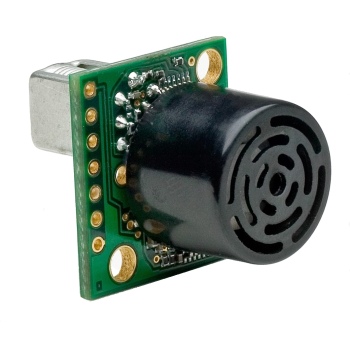

The MB1230 XL‑MaxSonar‑EZ3 has high noise tolerance and a narrow beam with more sensitivity than the MB1240. The XL-MaxSonar-EZ3 also offers increased sensitivity and a longer detection distance for small and medium sized targets.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

Component Overview

  • Resolution of 1 cm
  • 10Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no dead zone, objects closer than 20 cm range as 20 cm
  • Operates from 3.3-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure

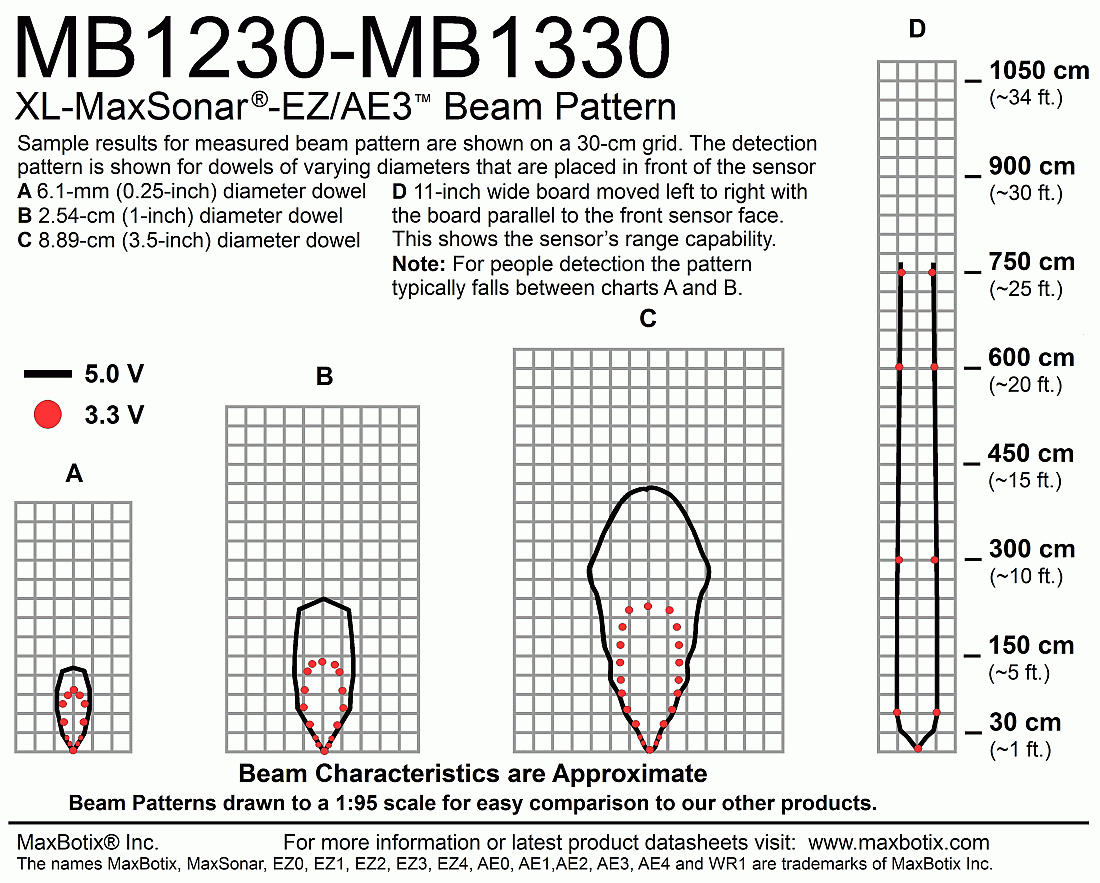

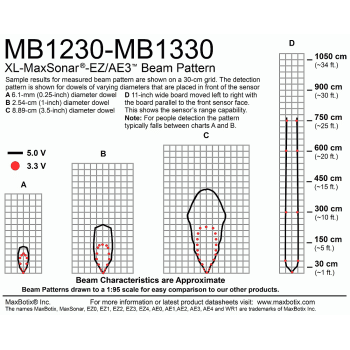

  • Narrow beam pattern
  • High noise tolerance
  • Maximum range of 765 cm (300 inches)
  • Hardware gain of 500
  • Medium range, narrow detection zone for small targets

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB1230
Manufacturer:
Maxbotix
