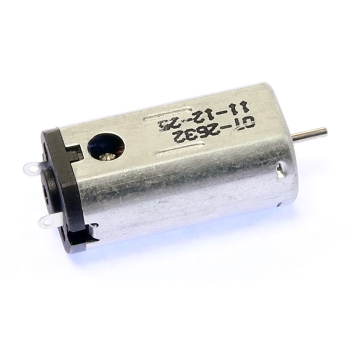

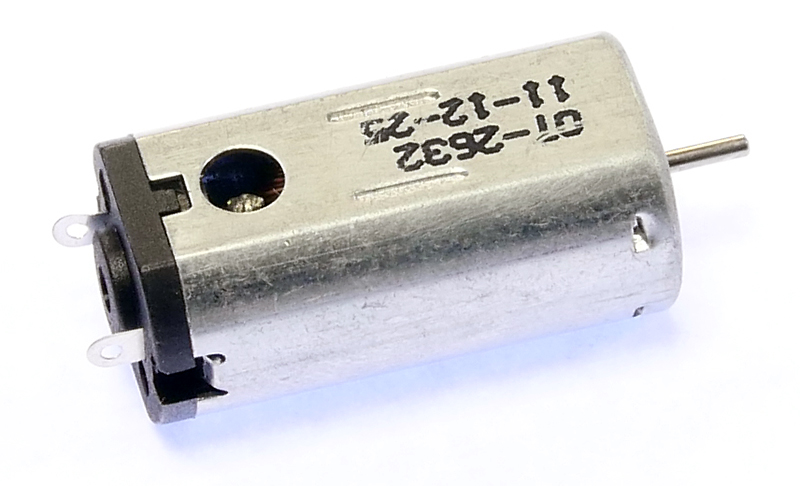

N40WA 3.7V brushed dc micro motor ideal for general model making. Motor life will be reduced when operating above 4.2V.
| Specifications | |
| Voltage Range: | 3.7V to 4.2V |
| Rated Voltage: | 3.7V |
| No Load Current: | 0.3A @ 3V |
| No Load Speed: | 27,500 RPM @ 3.7V |
| Rated Power | 0.1W |
| Rated Torque | 1.44Nm |
| Efficiency | 68% |
| Body Diameter: | 12 x 10mm |
| Body Length: | 24mm |
| Spindle Length: | 4mm |
| Spindle Diameter: | 1mm |
