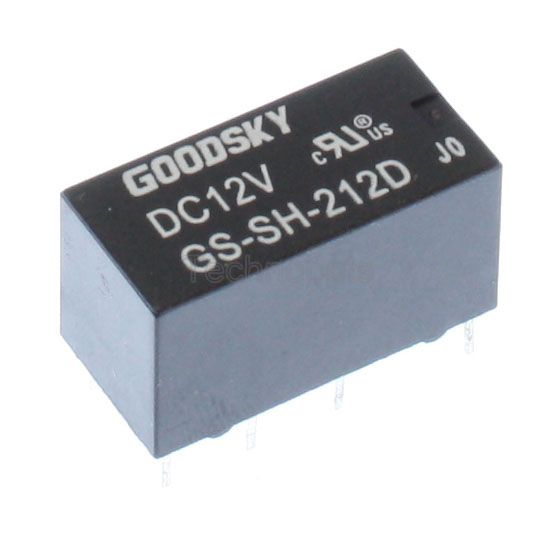

Relay PCB DPDT 1A 12V

Relay PCB DPDT 1A 12V


£1.40 incl VAT
(£1.17 exc. tax)
Price in points: 234 points
1601-041
5.00 g.
In stock
+
Add to wish list

A 12V coil, compact, lightweight double pole changeover relay with DPDT 1A contacts to give high density PCB mounting.

  • Coil consumption is 360mW
  • 92/8 gold silver alloy on silver palladium contacts allows low level switching (1V DC 1mA)
  • Casing is epoxy resin sealed for washing
  • BT47 style relays
  • UL and CSA approved
  • GS-D series

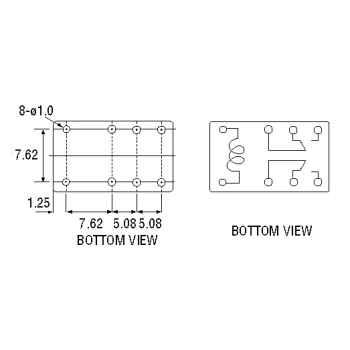

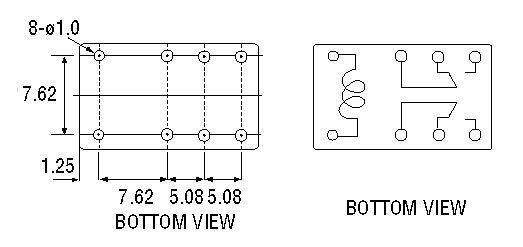

  • Dimensions20.3 x 10.1 x 15.6mm
  • Contact rating1A 24V DC/120V AC
  • Max. switching power30W
  • Contact arrangementDouble pole changeover
  • Contact materialAg Alloy
  • Operate/release time6ms/4ms max.
  • Pull in voltage75% max.
  • Drop out voltage10% min.
  • Life expectancy mechanical107 operations, electrical105 operations
