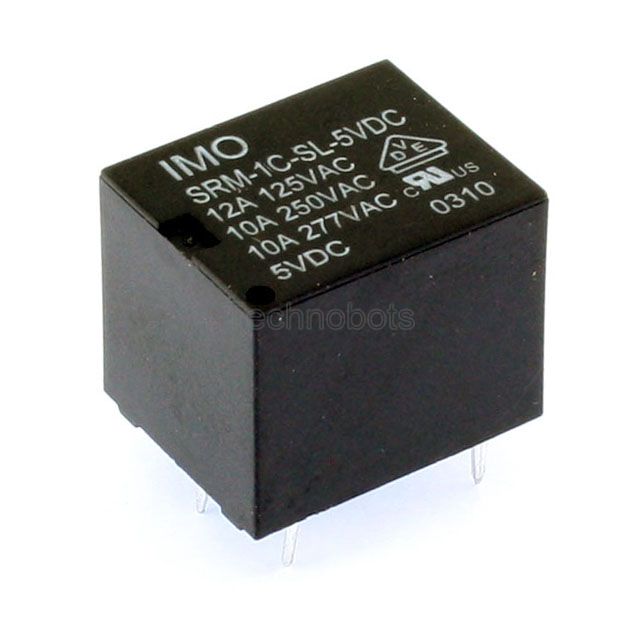

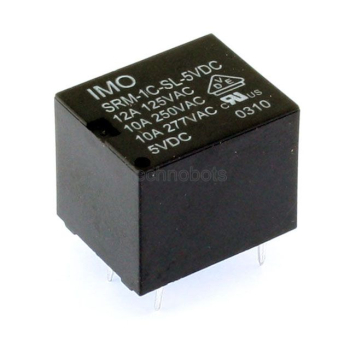

Relay PCB SPDT 10A 5V

List price: £1.64
£1.25
(£1.50 UK, incl VAT) You save: £0.39 (24%)
Price in points: 250 points
1601-050
10 g
In Stock
+ −
Add to wish list

A 5V coil, sealed, SPCO relay that is suitable for high power applications.


  • SPCO Configuration
  • Subminiature package for PCB layout
  • Sealed and flux-tight construction
  • UL and TUV approved



Switching current max.

10A

Switching voltage max.

30V DC/277V AC

Switching power max.

2770VA/210W

Contact rating

7A 250V DC/10A 277V AC

Contact resistance

100mΩ

Insulation resistance

100MΩ @ 500V DC

Dielectric strength

1500V AC 1 min.

Operate time

10ms

Release time

5ms

Operating temperature

–40°C to +85°C

Mechanical life

1 x 107 ops.

Electrical life

1 x 105 ops.

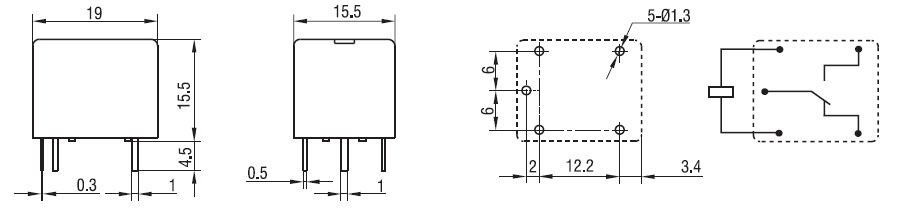

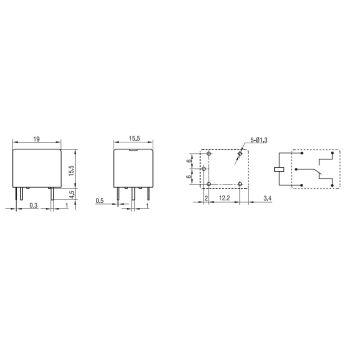

Dimensions

19 x 15.5 x 15.5mm

Coil power

0.36W

Coil voltage nom.

5V

Coil resistance

70Ω

Pickup voltage

3.8V DC

Dropout voltage

0.5V DC

Allowable voltage

6.5V DC
