Reflectance Sensor QTRX-MD-03A, 3 Channel, 8mm Pitch, Analogue Output

Reflectance Sensor QTRX-MD-03A, 3 Channel, 8mm Pitch, Analogue Output


£3.66 incl VAT
(£3.05 exc. tax)
Price in points: 610 points
3801-702
1.00 g.
In stock
+
Add to wish list

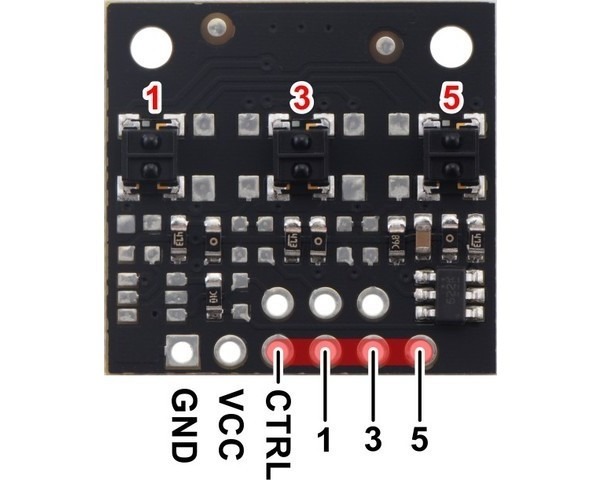

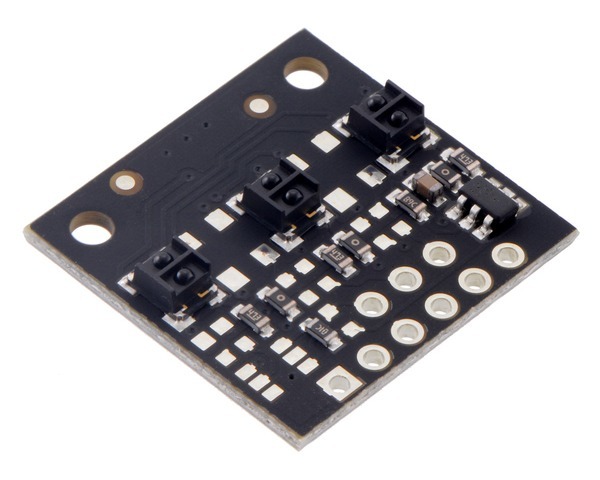

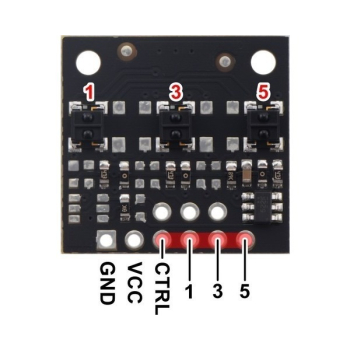

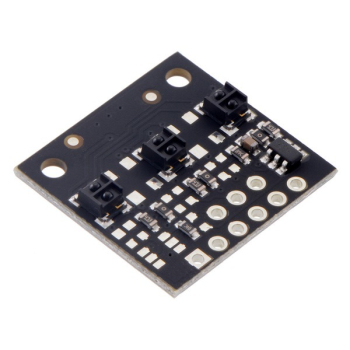

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features high-performance, low-current QTRX sensors with lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
8 mm × 3 21.0 × 20.0 analog 3.5 mA 9 mA 10 mm

For further technical information, please see the main product page here
