Save 29%

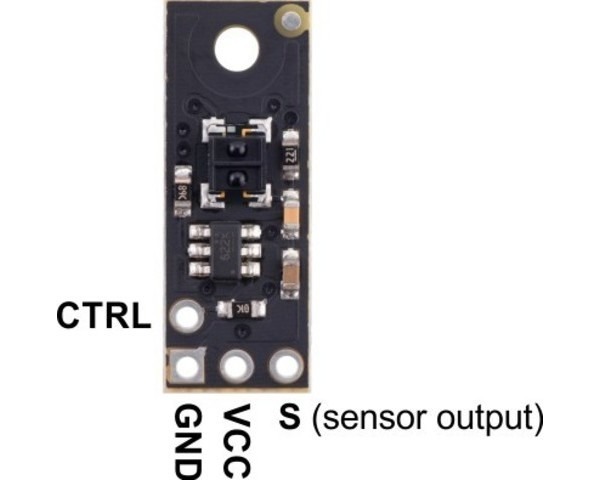

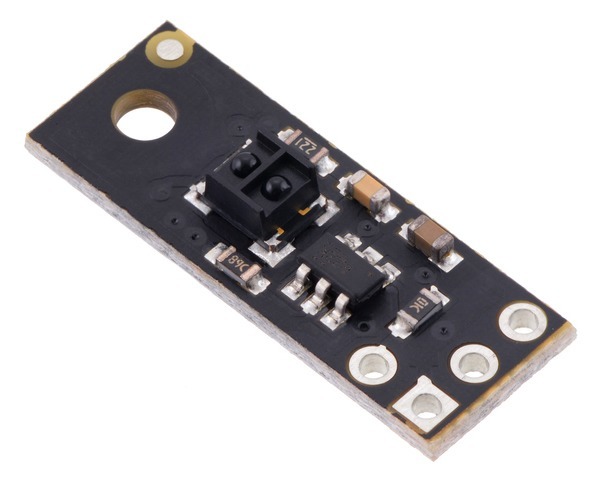

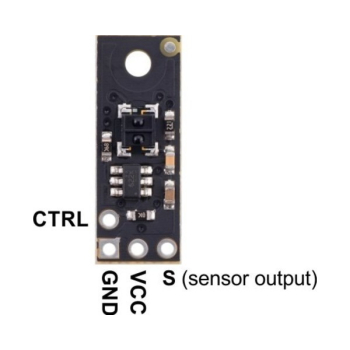

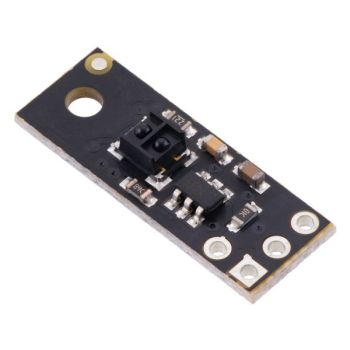

Reflectance Sensor QTRX-MD-01RC, 1 Channel, 8mm Pitch, RC (Digital) Output

List price: £2.32
£1.65
(£1.98 UK, incl VAT) You save: £0.67 (29%)
Price in points: 330 points
3801-710
1 g
6 item(s)
End of Line
+
Add to wish list

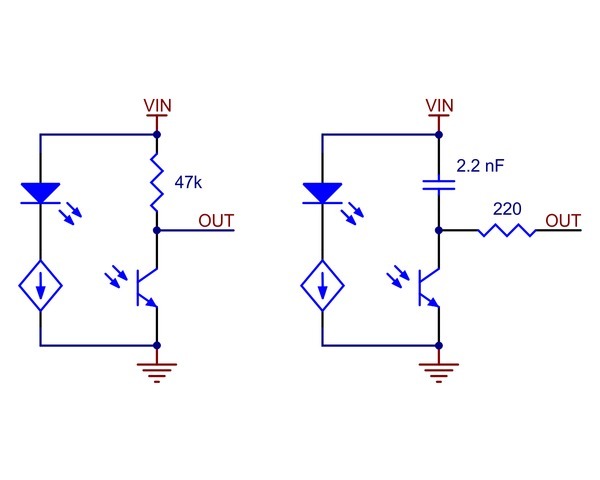

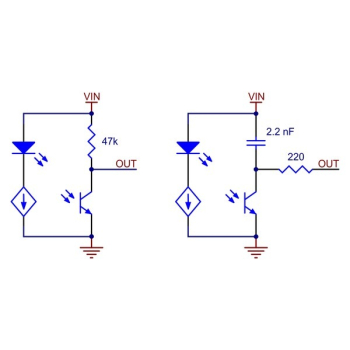

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features a high-performance, low-current QTRX sensor with lenses.

sensors size
(mm)
output max current optimal
range
LED board
1 7.5 × 20.0 RC (digital) 3.5 mA 5 mA 10 mm

For further technical information, please see the main product page here
