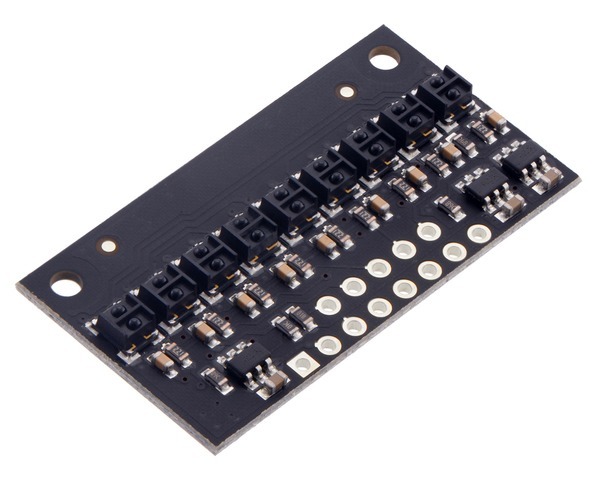

Reflectance Sensor QTRX-HD-09RC, 9 Channel, 4mm Pitch, RC (Digital) Output

List price: £12.07
£3.59
(£4.31 UK, incl VAT) You save: £8.48 (70%)
Price in points: 718 points
3801-747
3 g
2 item(s)
End of Line
+
Add to wish list

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features high-performance, low-current QTRX sensors with lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
4 mm × 9 37.0 × 20.0 RC (digital) 3.5 mA 22 mA 10 mm

For further technical information, please see the main product page here
