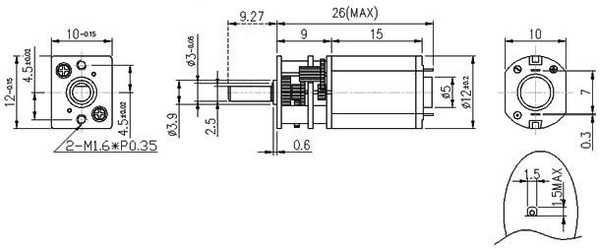

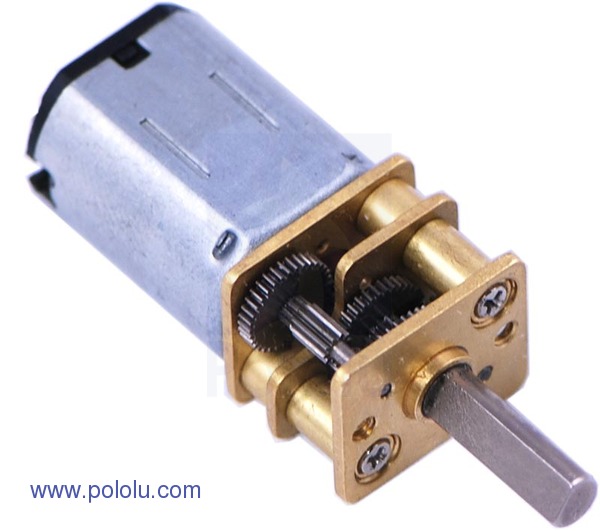

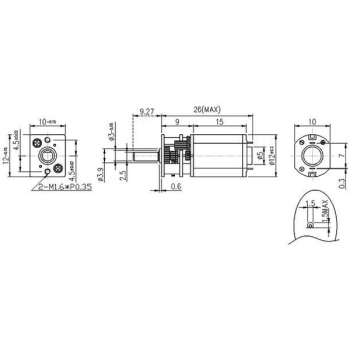

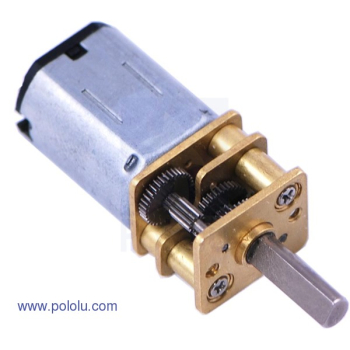

This gearmotor is a miniature 24 x 12 x 10mm, low-current brushed DC motor with 210.59:1 metal gearbox, similar to Sanyo’s popular 12 mm gearmotors. These units have a 9.3mm long, 3 mm-diameter D-shaped output shaft.
Key specs at 6 V: 150 RPM and 70 mA free-run, 3kg.cm (42 oz-in) and 1.6 A stall.
