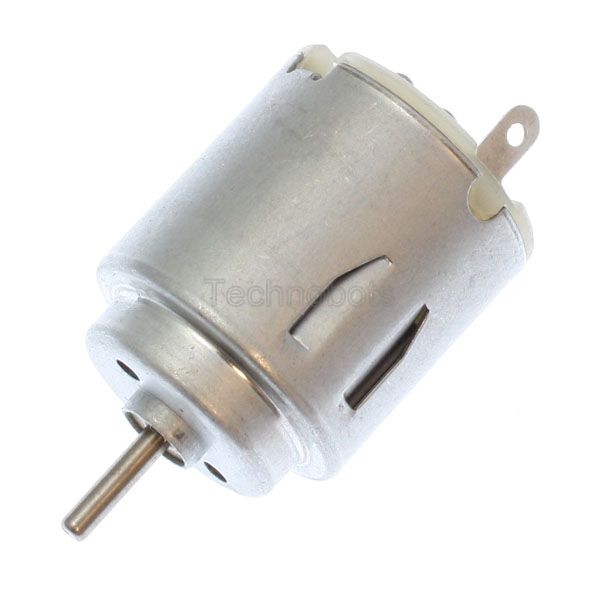

Model Motor Size C

Write a review
£0.54
(£0.65 UK, incl VAT)
Price in points: 108 points
1400-022
20 g
In stock
+ −
Add to wish list
Specifications
Voltage Range: 1.5V to 4.5V
Rated Voltage: 3V
Rated Power: 1.29W
No Load Current: 0.3A
Rated Load Current: 1.05A
Rated Load Speed: 11,500 RPM
Torque: 10.9 g/cm
Stall Torque: 49g/cm
Body Diameter: 21mm
Body Length: 25mm
Spindle Length: 8.1mm
Spindle Diameter: 2mm



Downloads

No posts found

Write a review

I need to purchase some small dc motors for plastic aircraft kits but don't want them running fast-just to replicate ticking over speed when on show. Can one regulate speed via voltage reduction or is it better to use some form of power regulator ??

Asked by Paul Wallis | 20/08/2014, 13:02 | 1 answer(s)
