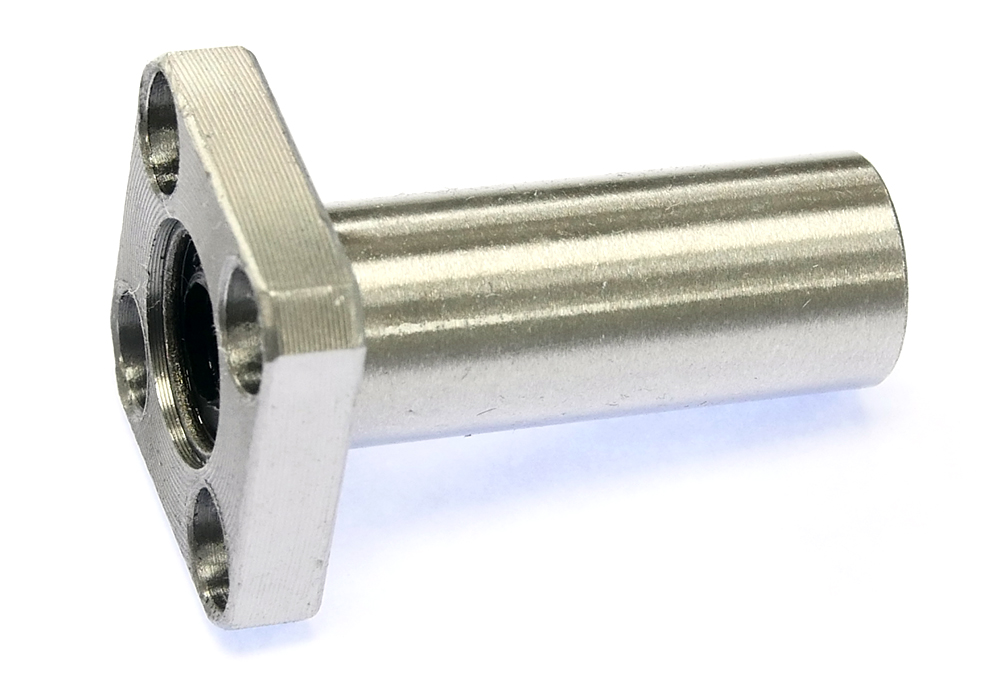

Makertronics Linear Bearing LMK6LUU 6mm Long Square Flange Bushing

£3.90
(£4.68 UK, incl VAT)
Price in points: 780 points
4604-843
23 g
In Stock
+
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

Like our standard LMK6UU linear slide bush with square flange for 6mm hardened steel shafts but in a longer form.

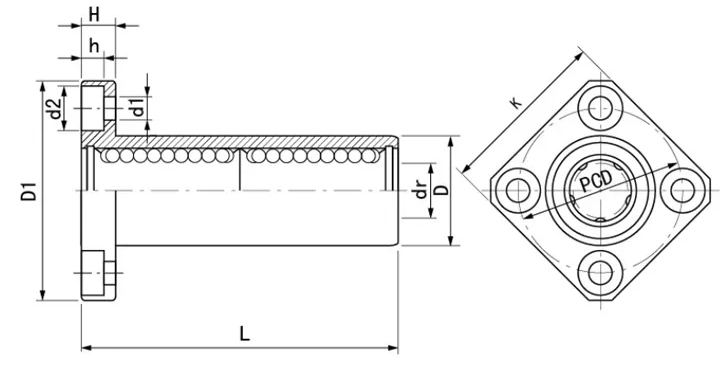

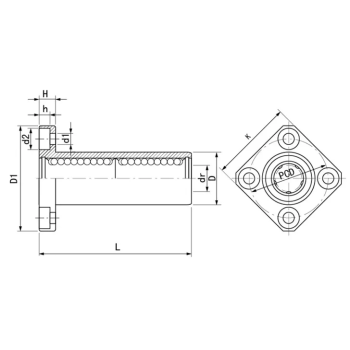

  • Bearing Diameter D: 12mm
  • Flange Size K: 22mm
  • Overall Length L: 35mm
  • Flange Width H: 5mm
  • Flange Mounting Holes Pitch Diameter: 20mm
  • Inside diameter: 6mm
  • Number of ball rows: 4
