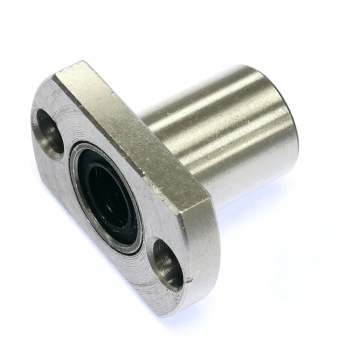

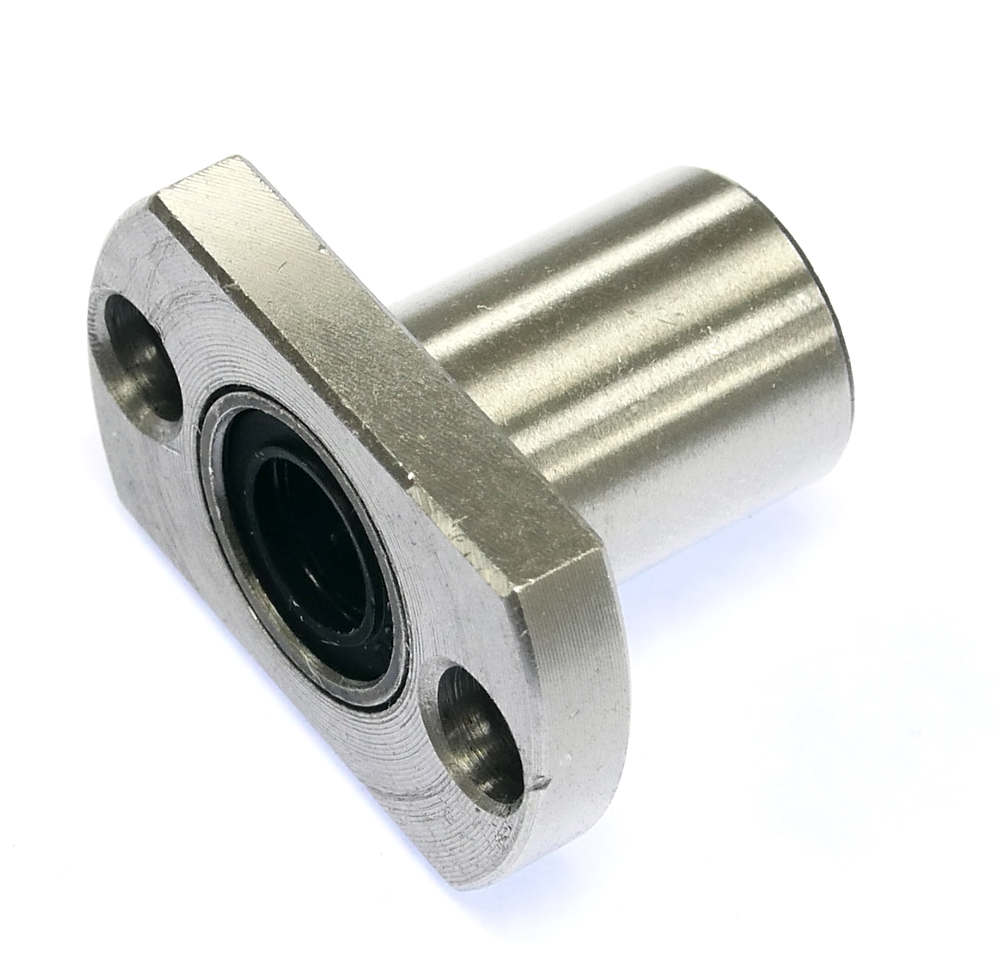

Makertronics Linear Bearing LMH8UU 8mm Oval Flange Bushing

£2.05
(£2.46 UK, incl VAT)
4604-834
30 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

Like our standard LMF8UU linear slide bush for 8mm hardened steel shafts but oval flange mounting rather than round.

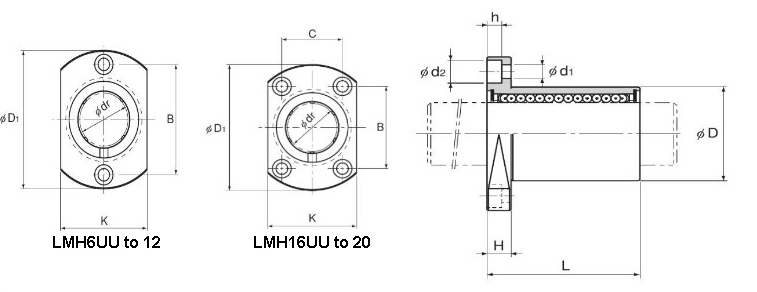

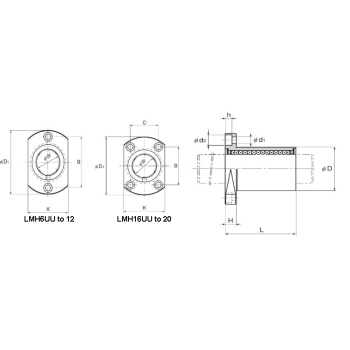

  • Bearing Diameter D: 15mm
  • Flange Size D1 x K: 32x21mm
  • Overall Length L: 24mm
  • Flange Width H: 5mm
  • Flange Mounting Holes Pitch Centres B: 24mm
  • Inside diameter: 8mm
  • Number of ball rows: 4
