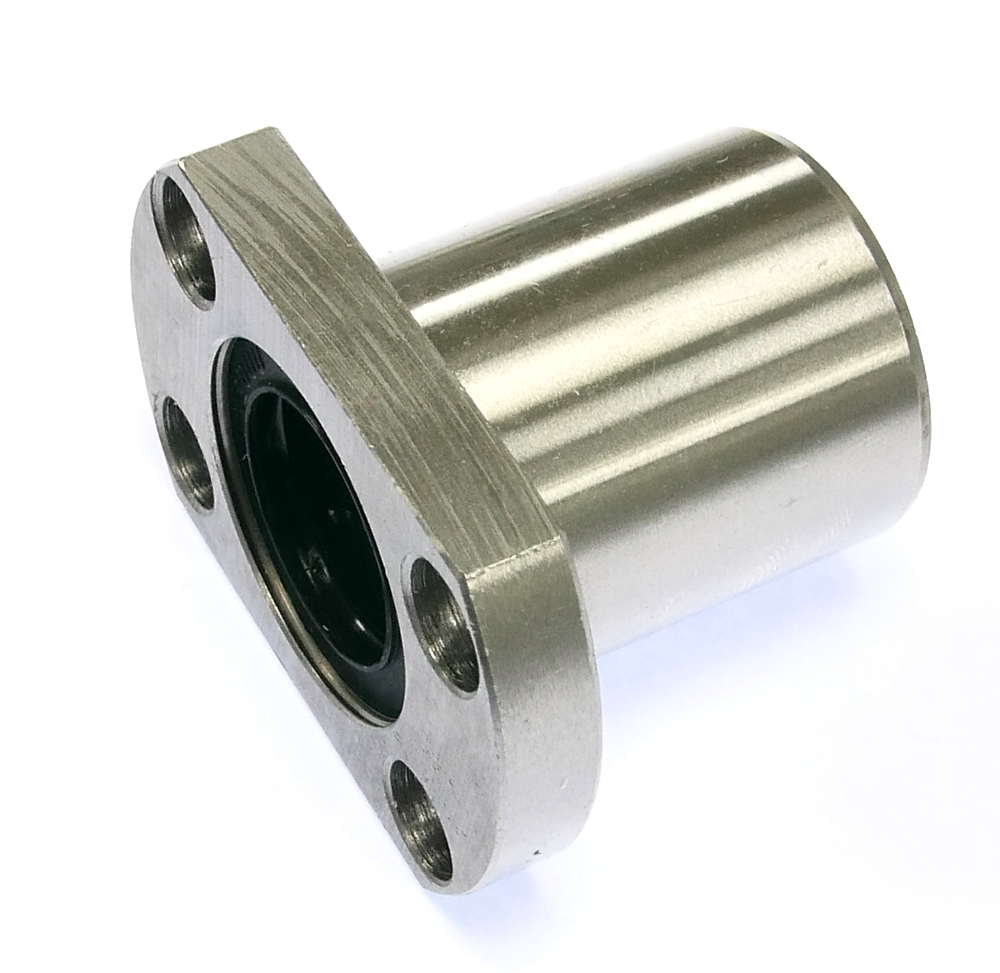

Makertronics Linear Bearing LMH20UU 20mm Oval Flange Bushing

£3.56
(£4.27 UK, incl VAT)
Price in points: 712 points
4604-838
60 g
In stock
+

Like our standard LMF20UU linear slide bush for 20mm hardened steel shafts but oval flange mounting rather than round.

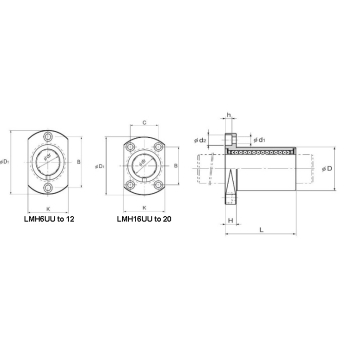

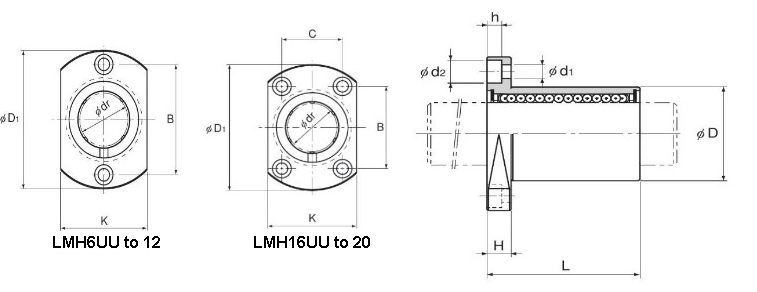

  • Bearing Diameter D: 32mm
  • Flange Size D1 x K: 48x34mm
  • Overall Length L: 42mm
  • Flange Width H: 8mm
  • Flange Mounting Holes Pitch Centres B x C: 36x24mm
  • Inside diameter: 20mm
  • Number of ball rows: 5
