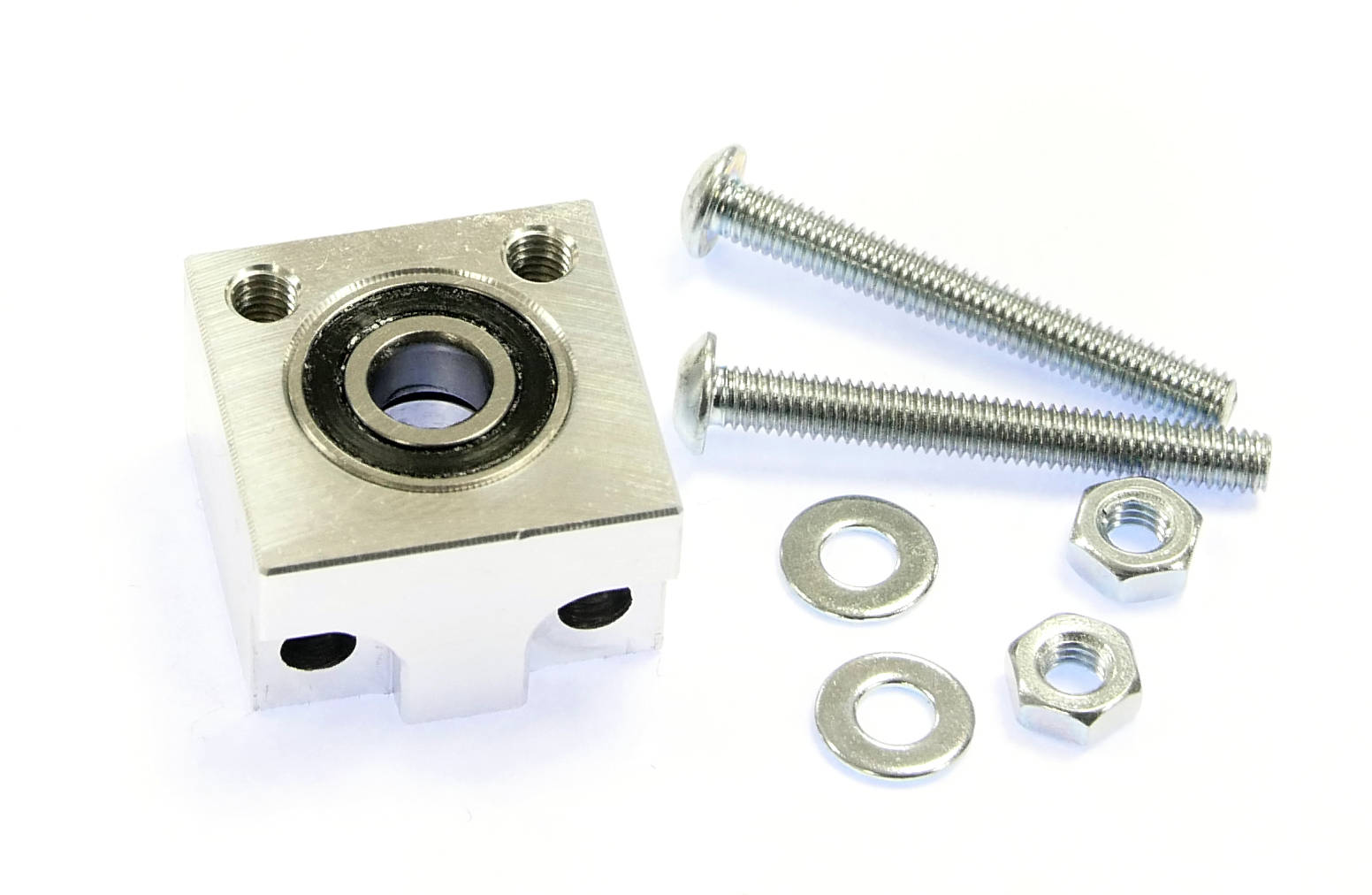

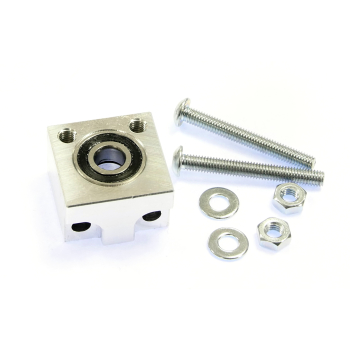

Manufactured in-house, these aluminium bearings blocks with fitted bearing are available in three different bearing bore sizes:

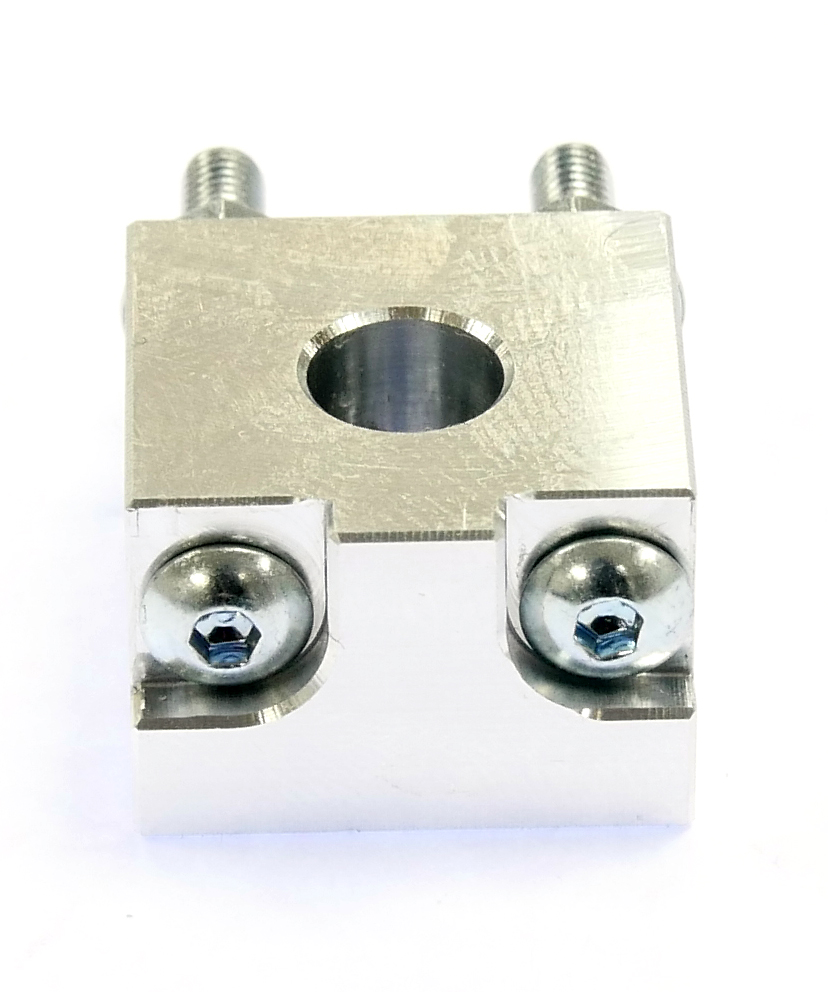

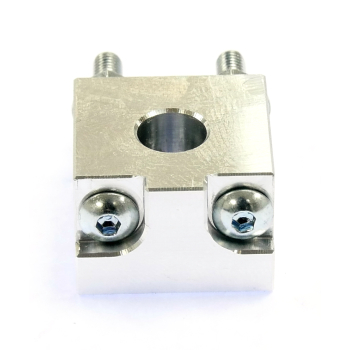

All 3 sizes are housed in the same size block of dimensions 18x18x12mm. The block has two clearance holes for M3 screws (supplied) that allows the block to be mounted vertically like a pillow block design. The screw heads are pocketed to enhance the appearance.
Additionally, two M3 tapped holes are provided for face mounting. Maximum depth of screws is 4mm.
Note: Sold individually.
