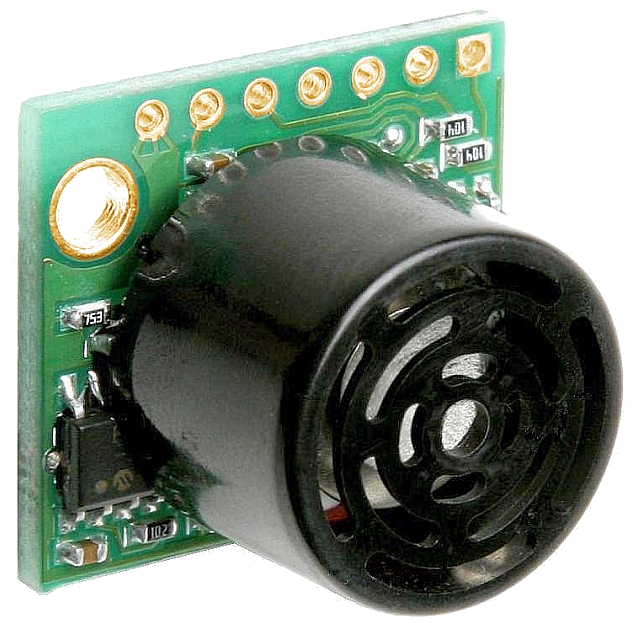

LV-MaxSonar-EZ2, Maxbotix MB1020

£24.11
(£28.93 UK, incl VAT)
Price in points: 4822 points
3801-802
6 g
2 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £21.70 £19.77

The MB1020 LV-MaxSonar-EZ2 is a good compromise between sensitivity and side object rejection. The LV-MaxSonar-EZ2 is an excellent choice for applications that require slightly less side object detection and sensitivity than the MB1010 LV-MaxSonar-EZ1.

Component Overview

  • Resolution of 1 inch
  • 20Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Narrower beam width than the LV-MaxSonar-EZ1

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB1020
Manufacturer:
Maxbotix
