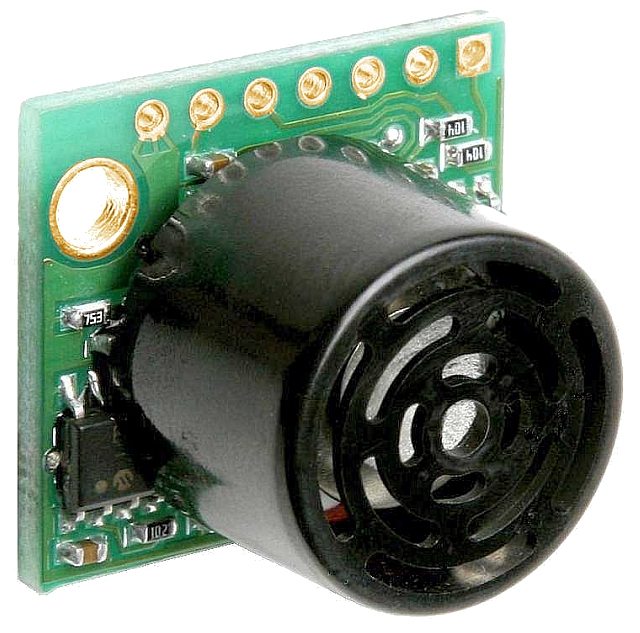

LV-MaxSonar-EZ0, Maxbotix MB1000

£26.09
(£31.31 UK, incl VAT)
Price in points: 5218 points
3801-800
6 g
2 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £23.48 £21.39

The MB1000 LV‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from LV‑MaxSonar‑EZ sensor line. This makes the LV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.

Component Overview

  • Resolution of 1 inch
  • 20Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product

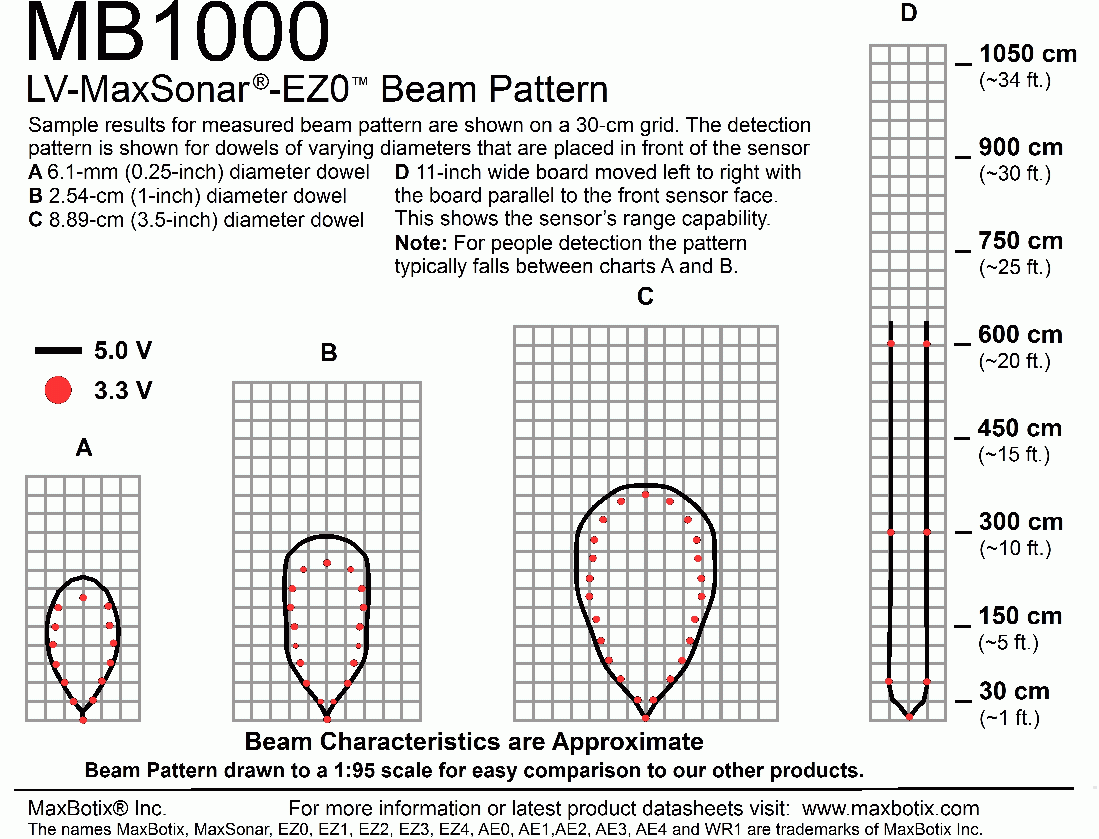

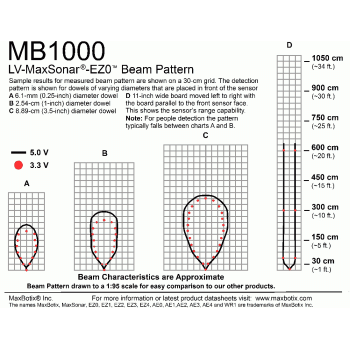

  • Widest beam of the LV-MaxSonar-EZ sensors
  • Great for people detection applications

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB1000
Manufacturer:
Maxbotix
