Save 47%

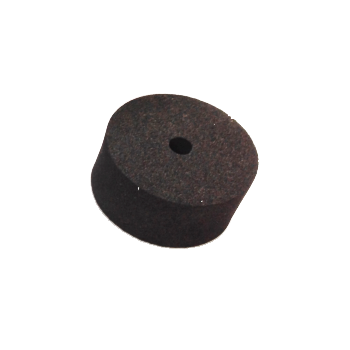

FingerTech Neoprene Foam Snap Wheels 76.2 x 19.05mm Pk of 2

List price: £3.77
£2.01
(£2.41 UK, incl VAT) You save: £1.76 (47%)
Price in points: 402 points
4611-514
19 g
2 item(s)
End of Line
+
Add to wish list

A pack of 2 wheels of 76.2mm diameter by 19.05mm wide

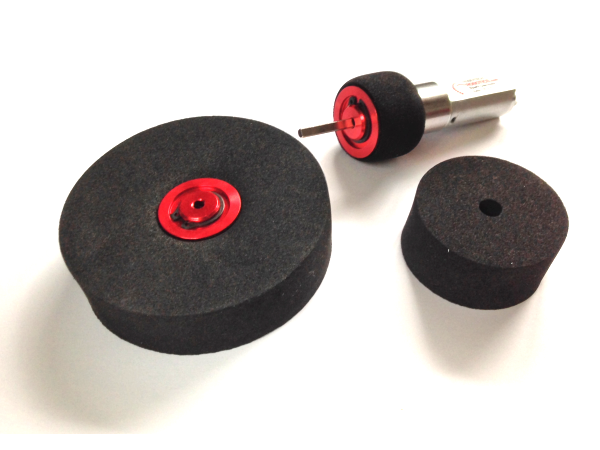

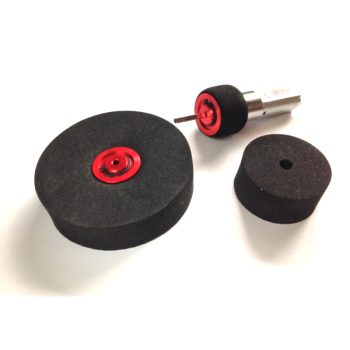

• LiteTech Treads (high-quality neoprene foam tyres) mated with the Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground.
• Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.
• Diameters available from 25.4mm-76.2mm (1.0in-3.0in) in 6.35mm (0.25in) increments.
• Widths available of 12.7mm and 19.1mm (0.5in and 0.75in)

Foam wheels are excellent at preventing shock from destroying delicate gearmotors.

Note: The inner holes are a little tight on the hubs.  They fit, but you may want to drill them larger to make installation easier.  This will be addresed in the next batch!

Specifications:

Diameter - Thin (12.7mm / 0.5in width):
1.00in (25.40mm)
1.25in (31.75mm)
1.50in (38.10mm)
1.75in (44.45mm)
2.00in (50.80mm)
2.25in (57.15mm)

Diameter - Thick (19.1mm / 0.75in width):
1.00in (25.40mm)
1.25in (31.75mm)
1.50in (38.10mm)
1.75in (44.45mm)
2.00in (50.80mm)
2.25in (57.15mm)
2.50in (63.50mm)
2.75in (69.85mm)
3.00in (76.20mm)
Weight (each wheel):
0.63 grams (0.02 oz)
1.08 grams (0.04 oz)
1.50 grams (0.05 oz)
2.20 grams (0.08 oz)
2.90 grams (0.10 oz)
3.70 grams (0.13 oz)

Weight (each wheel):
0.95 grams (0.03 oz)
1.50 grams (0.05 oz)
2.30 grams (0.08 oz)
3.10 grams (0.11 oz)
4.10 grams (0.14 oz)
5.10 grams (0.18 oz)
6.40 grams (0.23 oz)
7.90 grams (0.28 oz)
9.40 grams (0.33 oz)


Includes: One pair of tyres, excludes hubs.
