12Vdc electric pump for air or water. Not intended for continuous use, intermittent use only.

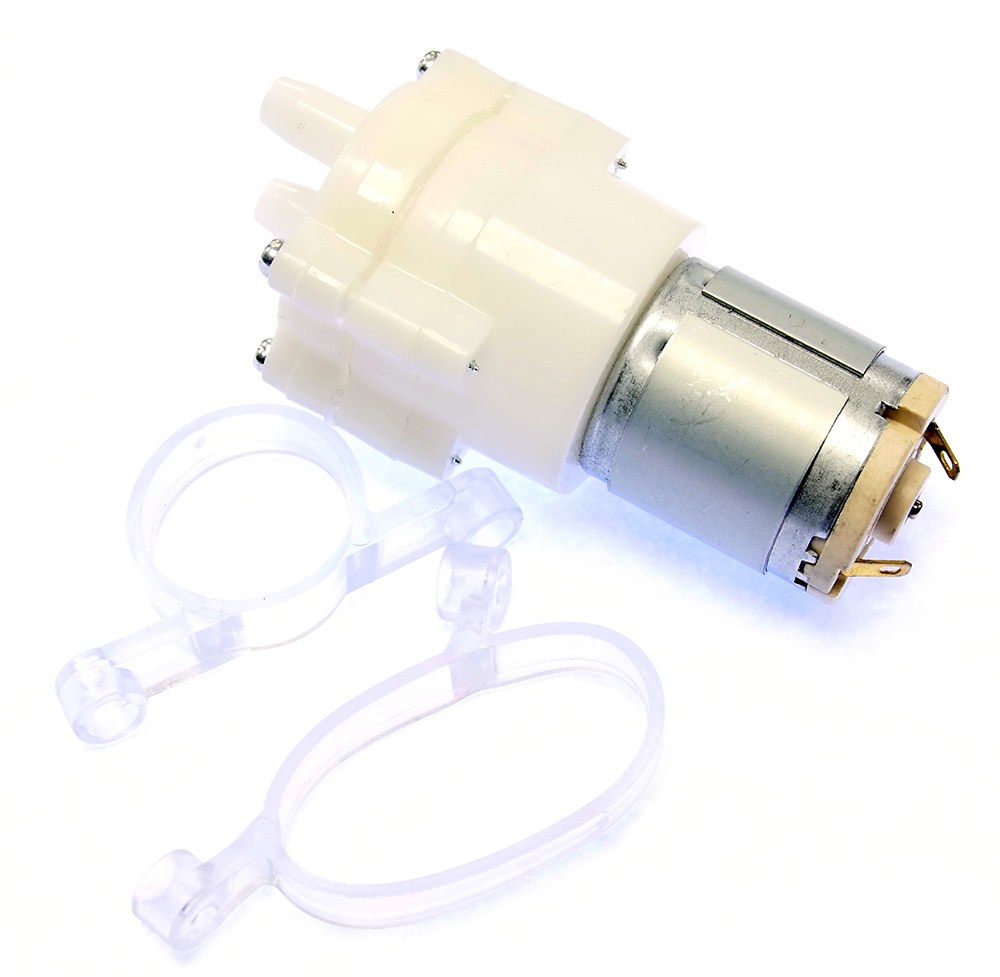

Product model: 365 12V DC miniature diaphragm pump, includes rubber mounting belts.
Specification:
Operating voltage: DC 12V
No load current: 0.23mA
Load: 450 mA
Maximum flow: 2-3 litres/minute
The highest lift: 1-2.5 metres
Maximum suction: 2 metres
Inlet and outlet diameter: Outside diameter 8mm
Motor length: 32mm
Motor diameter: 29mm
Pump length: 38mm
Total length: 74mm
Pump body: 40mm x 35mm
