5mm LED Red Bright 80mcd

£0.08
(£0.10 UK, incl VAT)
Price in points: 16 points
2110-504
1 g
In Stock
+

Minimum quantity for "5mm LED Red Bright 80mcd" is 5.

Add to wish list

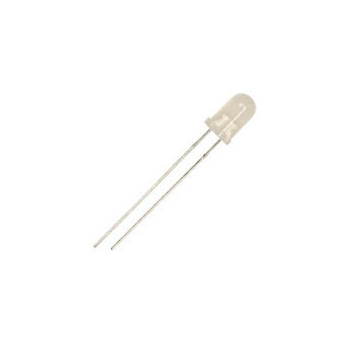

A 5mm 2V 80mcd high efficiency red LED with a water clear lens. We use this particular LED with our LED holder for many MFOS synth modules .

LED Colour Red
Forward Current 30 mA
Forward Voltage Typical 2 V
Height 8.6 mm
Lens Type Water Clear
Luminous Intensity 80 mcd
Minimum Operating Temp -40 °C
Peak Wavelength 627 nm
Power Rating 75 mW
Reverse Voltage 5 V
Viewing Angle 20 °
Width 5.9 mm
Max Operating Temp +85 °C
