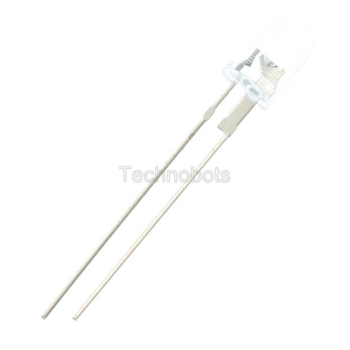

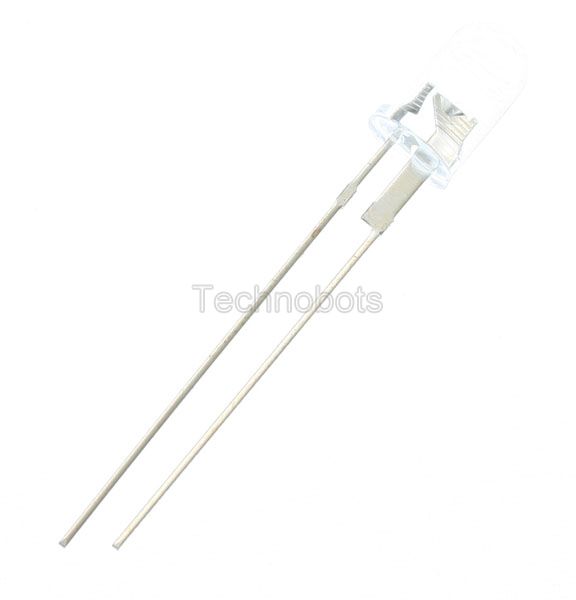

High intensity LED in a 5mm package that features a blade cathode which acts as a heat sink to dissipate heat at high current levels.
- High luminous intensity for use in a wide range of indication and illumination applications requiring a high output
- Manufactured using the latest technologies for long life, energy efficiency and high reliability
- Suitable for PCB and panel mounting applications
- Water clear lens
| Specification | ||||||
| Colour | Wavelength (nm) | Lum. Int. (mcd) @ IF 30mA | IF max (mA) | VF Typ. (V) | VF max. (V) | View Angle |
| Yellow | 590 | 20000 | 50 | 2.2 | 2.6 | 15 |
