XL-MaxSonar - WRCA1, Maxbotix MB7077

£91.32
(£109.58 UK, incl VAT)
Price in points: 18264 points
3801-870
35 g
1 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £82.19 £74.88

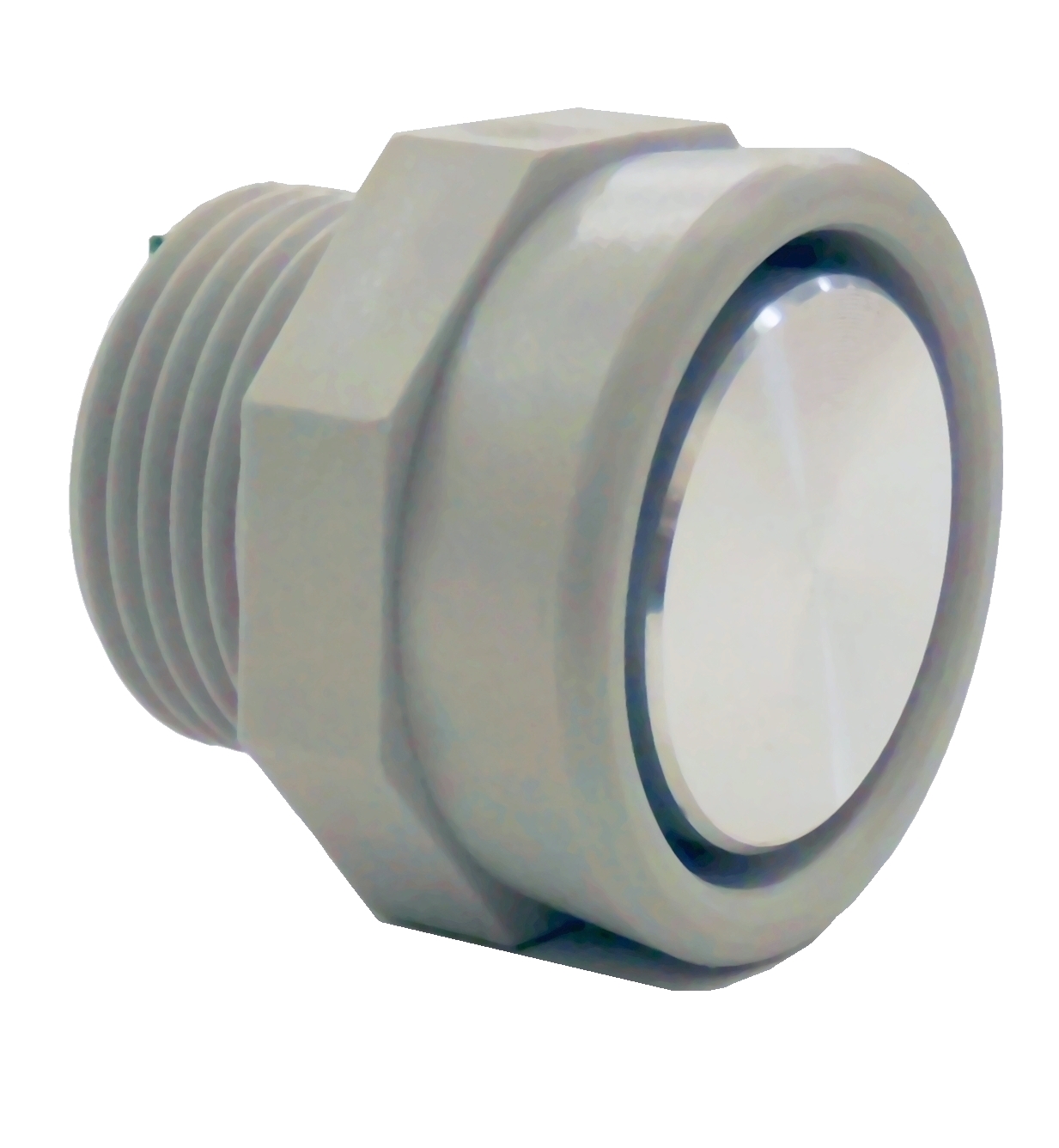

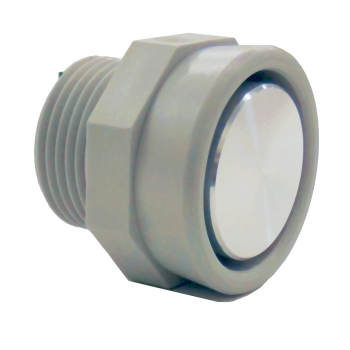

The MB7077 XL-MaxSonar-WRC1 offers some of our most popular outdoor ultrasonic rangefinders in an extra-compact housing.

For users that can afford the extra mounting size and weight selecting the similar XL-MaxSonar-WR unit is recommended for better performance.

Compact outdoor ultrasonic rangefinder component modules

The weather resistant XL-MaxSonar-WRC is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WRC sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.

A few of our most popular outdoor modules have been made available in a lighter, more compact, package.

The MB7067 is the pulse width output version of this sensor.
The MB7070 is the non-compact version of this sensor.
The MB7078 is the stability filter version of this sensor.

Models with additional chemical resistance are available

Component Overview

  • Resolution of 1 cm
  • 10Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
  • Possible dead zone 0-4 cm, objects closer than 20 cm range as 20 cm
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4" National Pipe Thread Straight)
  • Compact version of our most popular outdoor rangefinder
  • Maximum reported range of 765 cm (300 inches)
  • Maximum range to most targets of 645cm (254 inches)
  • Long range, narrow detection zone

For more information including tutorials, see our MaxBotix Home Page

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB7077
Manufacturer:
Maxbotix

No posts found

Write a review

Dear sir or madam, My name is Erwin Feskens and I am designing a sonar distance detector circuit to be placed on a robot for long distance pipe lines inspection. The pipe contains liquids and distances vary in the range of 100mm to 1000mm. I have a few questions about the MB7077. 1. Is this sensor suitable for underwater use? 2. Can the sensor be controlled with an Arduino? 3. 3. Which sensor do you recommend to me? 4. What is the delivery time to the Netherlands? Thanks in advance for you assistance.

Asked by Erwin Feskens | 11/12/2017, 10:29 | 1 answer(s)
