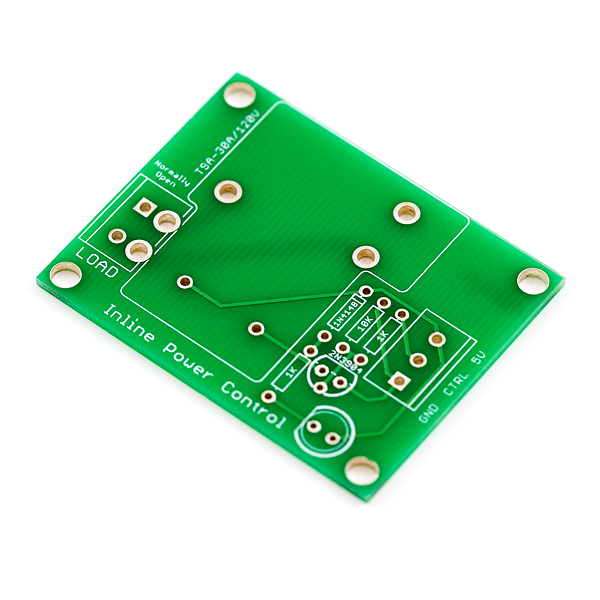

Relay Control Breakout Board Bare PCB

List price: £3.01
£1.61
(£1.93 UK, incl VAT) You save: £1.40 (47%)
Price in points: 322 points
2900-604
5 g
4 item(s)
End of Line
+ −
Add to wish list
Based on the Controllable Power Outlet Tutorial, this is the bare PCB from Sparkfun COM-09096 that allows you to switch high voltages with a simple 0 to 5V digital output on any microcontroller.

Note: This is only the bare PCB. You must buy the through hole components and solder them to the PCB.

Parts List:

* 1 Relay (1601-034)
* 2 1K Resistor (2007-100 or 2002-100)
* 1 10K Resistor (2008-010 or 2003-010)
* 1 Diode (2100-030)
* 1 Transistor (2300-260)
* 1 LED (2110-306)
* 1 2-pin Screw Terminal (1208-002)
* 1 3-pin Screw Terminal (1208-003)
