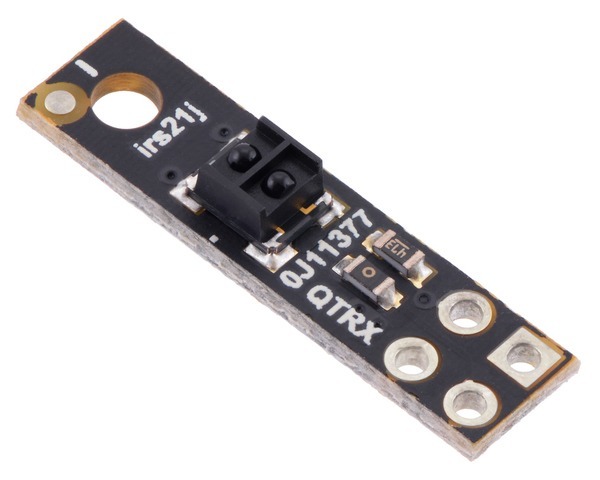

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 80 mm. This version features a high-performance QTRXL sensor with lenses and a high-brightness emitter for extra-long range.
| sensors | size (mm) |
output | max current | optimal range |
|
|---|---|---|---|---|---|
| LED | board | ||||
| 1 | 5.0 × 20.0 | analog | 30 mA | 32 mA | 20 mm |
For further technical information, please see the main product page here
