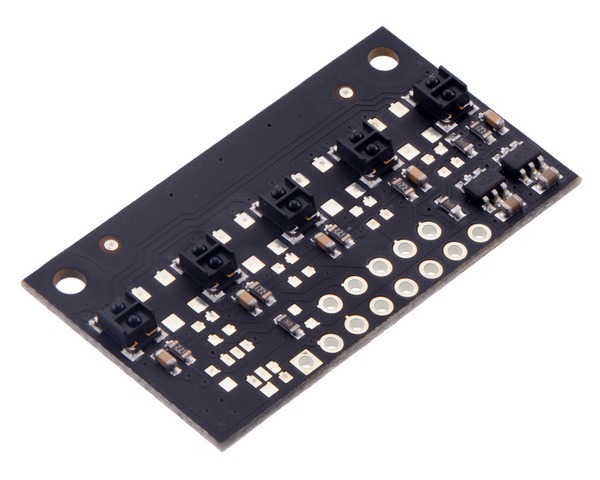

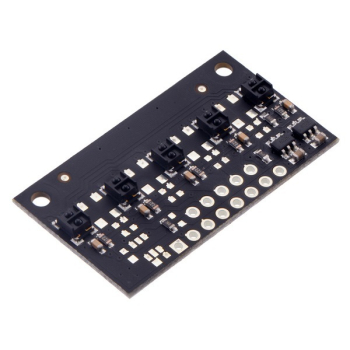

Reflectance Sensor QTRX-MD-05RC, 5 Channel, 8mm Pitch, RC (Digital) Output

Reflectance Sensor QTRX-MD-05RC, 5 Channel, 8mm Pitch, RC (Digital) Output


£5.90 incl VAT
(£4.92 exc. tax)
Price in points: 984 points
3801-714
2.00 g.
In stock
+
Add to wish list

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features high-performance, low-current QTRX sensors with lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
8 mm × 5 37.0 × 20.0 RC (digital) 3.5 mA 14 mA 10 mm

For further technical information, please see the main product page here
