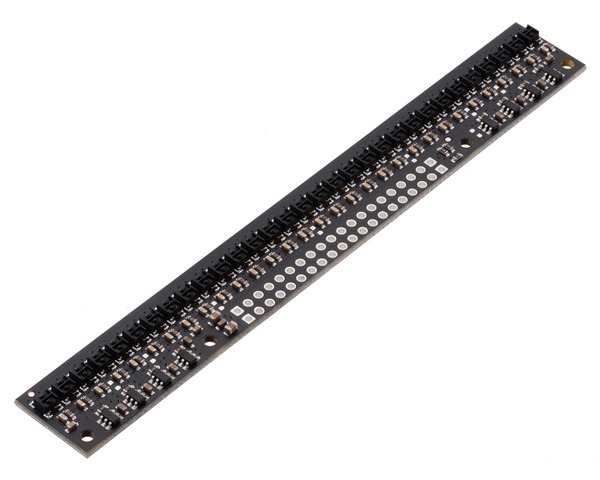

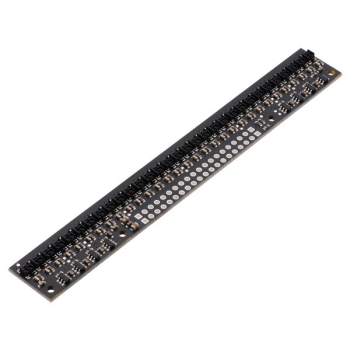

Reflectance Sensor QTRX-HD-31RC, 31 Channel, 4mm Pitch, RC (Digital) Output

List price: £38.86
£27.75
(£33.30 UK, incl VAT) You save: £11.11 (29%)
Price in points: 5550 points
3801-750
9 g
2 item(s)
End of Line
+
Add to wish list

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 50 mm. This version features high-performance, low-current QTRX sensors with lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
4 mm × 31 125.0 × 16.5 RC (digital) 3.5 mA 68 mA 10 mm

For further technical information, please see the main product page here
