Reflectance Sensor QTR-MD-04A, 4 Channel, 8mm Pitch, Analogue Output

List price: £4.01
£2.86
(£3.43 UK, incl VAT) You save: £1.15 (29%)
Price in points: 572 points
3801-603
1 g
4 item(s)
End of Line
+
Add to wish list

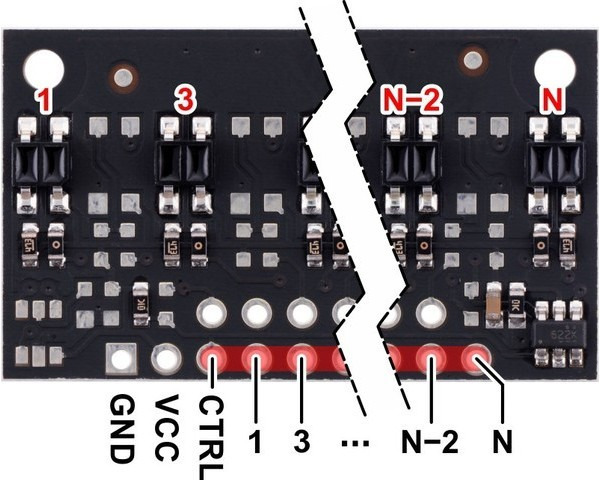

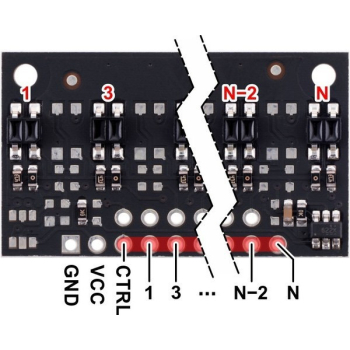

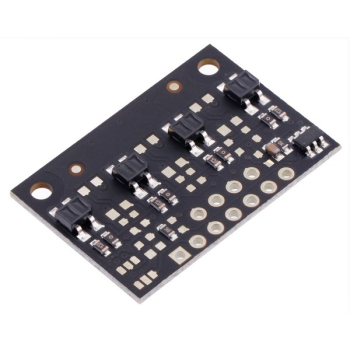

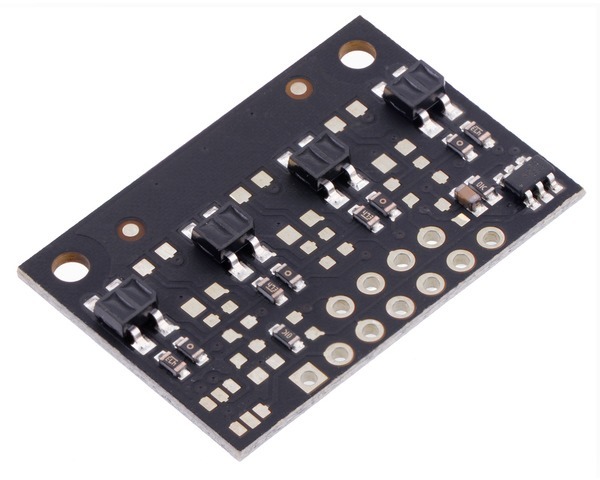

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
8 mm × 4 29.0 × 20.0 analog 30 mA 62 mA 5 mm

For further technical information, please see the main product page here
