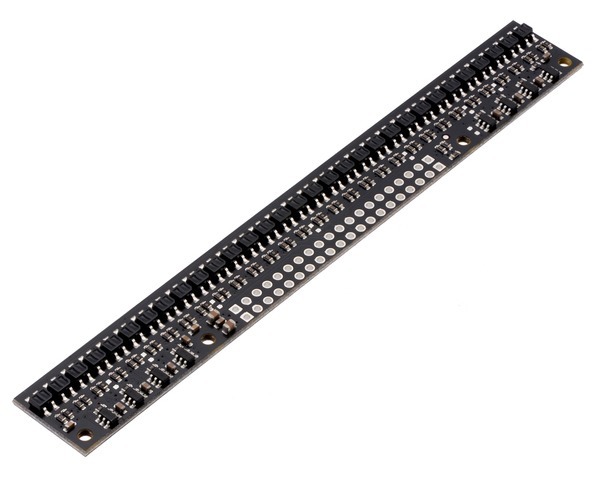

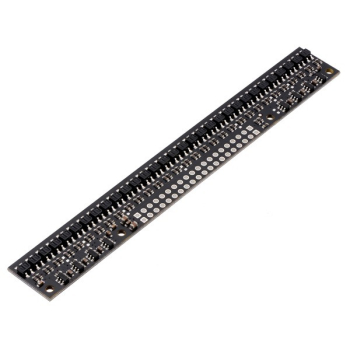

Reflectance Sensor QTR-HD-31A, 31 Channel, 4mm Pitch, Analogue Output

(£22.00 incl VAT)
Price in points: 3666 points
In stock

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 50 mm. This version features the traditional-style QTR sensors without lenses.

pitch × sensors size
output max current optimal
LED board
4 mm × 31 125.0 × 16.5 analog 30 mA 495 mA 5 mm

For further technical information, please see the main product page here
