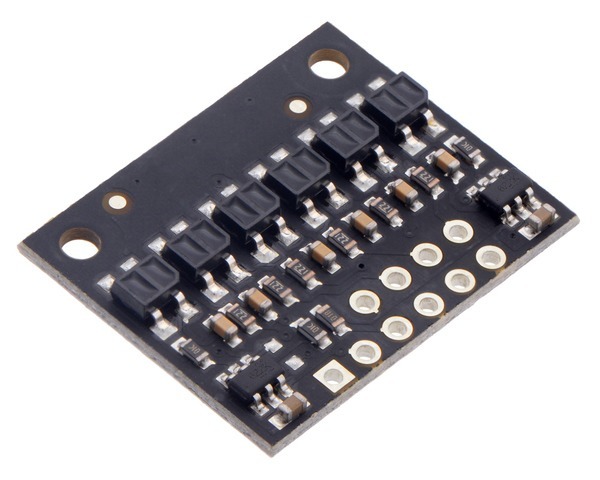

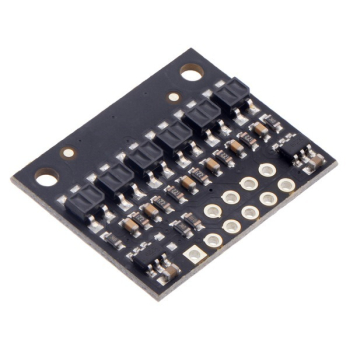

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.
|pitch × sensors||size
|4 mm × 7||29.0 × 20.0||RC (digital)||30 mA||125 mA||5 mm|
For further technical information, please see the main product page here
