Reflectance Sensor QTR-HD-06A, 6 Channel, 4mm Pitch, Analogue Output

Reflectance Sensor QTR-HD-06A, 6 Channel, 4mm Pitch, Analogue Output


£4.46 incl VAT
(£3.72 exc. tax)
Price in points: 744 points
3801-625
2.00 g.
In stock
+
Add to wish list

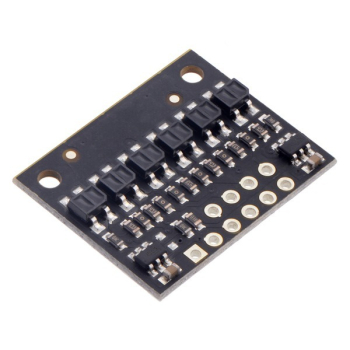

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
4 mm × 6 25.0 × 20.0 analog 30 mA 93 mA 5 mm

For further technical information, please see the main product page here
