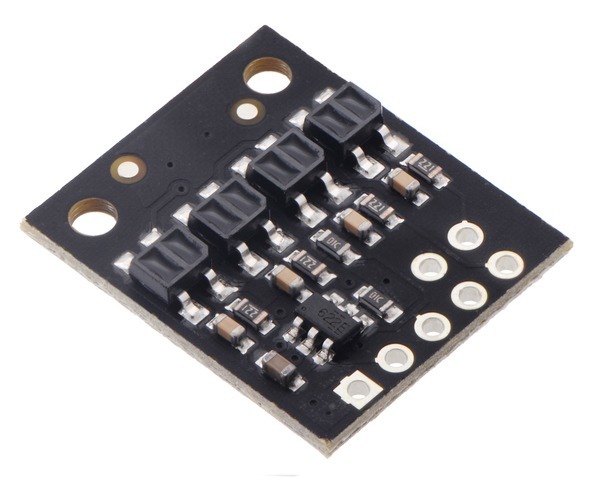

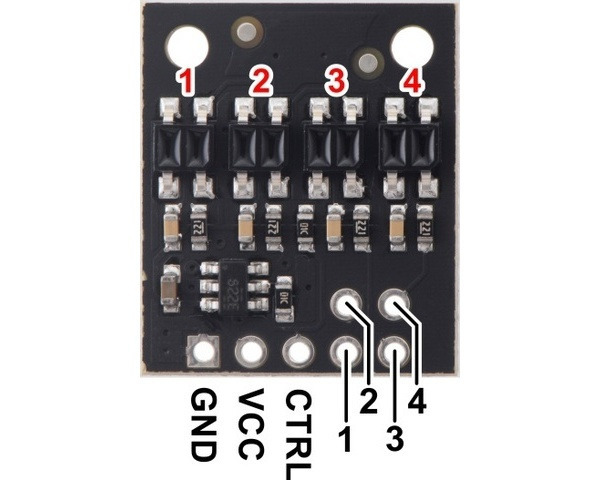

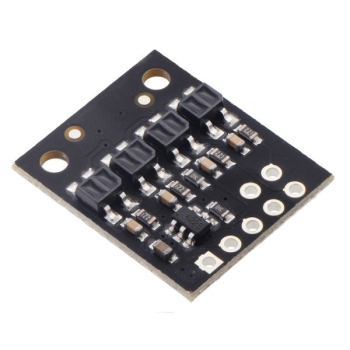

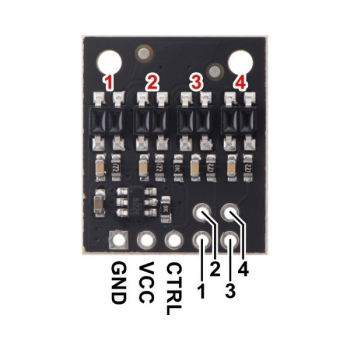

Reflectance Sensor QTR-HD-04RC, 4 Channel, 4mm Pitch, RC (Digital) Output

Reflectance Sensor QTR-HD-04RC, 4 Channel, 4mm Pitch, RC (Digital) Output


£3.01 incl VAT
(£2.51 exc. tax)
Price in points: 502 points
3801-643
1.00 g.
In stock
+
Add to wish list

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.

pitch × sensors size
(mm)
output max current optimal
range
LED board
4 mm × 4 17.0 × 20.0 RC (digital) 30 mA 62 mA 5 mm

For further technical information, please see the main product page here
