Pololu MQ Gas Sensor Carrier Bare PCB

£0.98
(£1.18 incl VAT)
Price in points: 196 points
2900-606
In stock
+

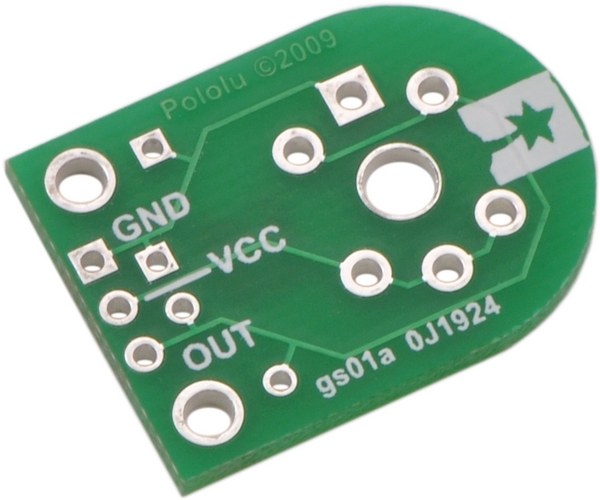

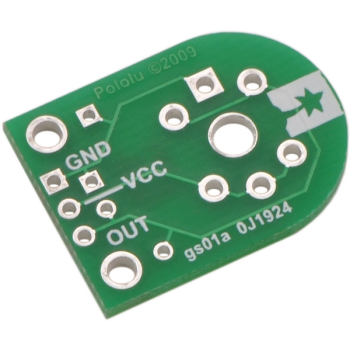

This breakout board is designed to work with any of the MQ-series gas sensors, simplifying the interface from 6 to 3 pins - ground, +5V VCC, and an analog voltage output - that are broken out with a 0.1" spacing, making the board compatible with 0.1" headers and standard breadboards and perfboards. This board has two mounting holes and provides convenient pads for mounting the gas sensor€™s required sensitivity-setting resistor (referred to as RL in the sensor datasheet). All of the board€™s traces are on the same side of the PCB, making it easy to see how the pads are connected.

The two mounting holes are intended to be used with #2 USA size screws (not included).

Note that we also offer an alternate gas sensor breakout board from Sparkfun that is more compact, with a diameter equal to that of the smaller gas sensor and the broken-out pins beneath the sensor.

Connections

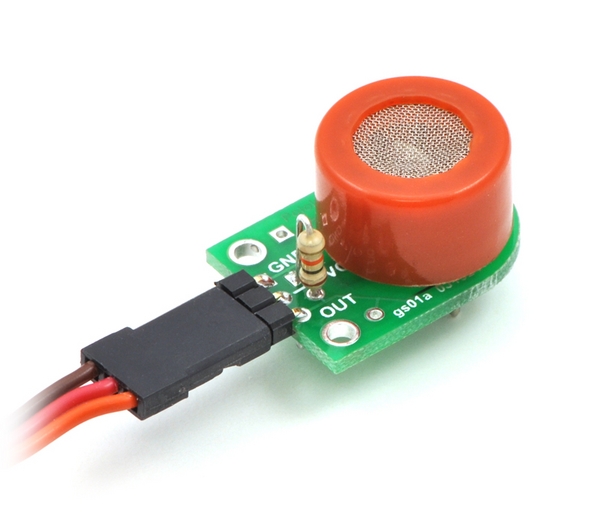

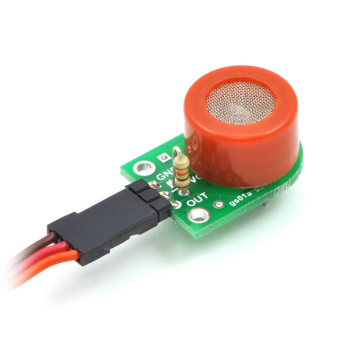

Connect VCC to 5 V, GND to ground, and OUT to an analog-to-digital converter (ADC). The board has two pairs through-hole pins for the required (but not included) sensitivity-selecting resistor RL, providing two mounting options - horizontal or vertical - between GND and OUT. The resistance of RL should be calculated using the datasheet for your particular gas sensor.
The MQ gas sensors have no polarity, so the gas sensor will work with the board all four ways it fits into the 6 pins (there two possible orientations on each side of the board).

Manufacturer's Details

Manufacturer's SKU :
1479
Manufacturer:
Pololu
