Pololu Gripper Kit with Position Feedback Servo

£15.04
(£18.05 UK, incl VAT)
Price in points: 3008 points
3221-101
70 g
In stock
+

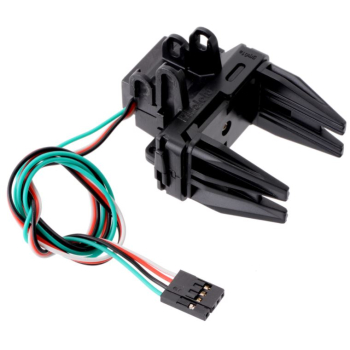

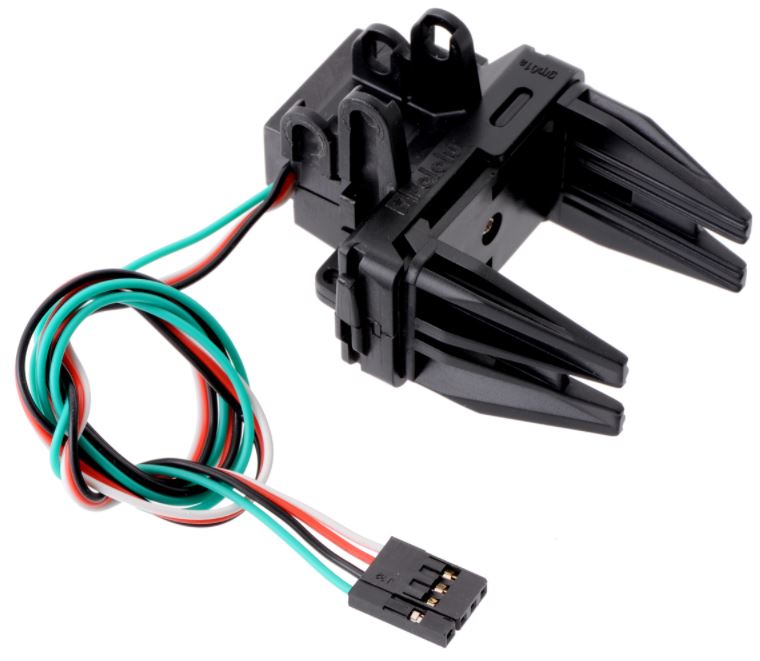

This small gripper uses a rack and pinion design with a servo-driven pinion and opposing racks to keep the gripper paddles synchronized and parallel to each other throughout its 32 mm range of motion. It includes a special micro servo with an additional wire that gives access to its feedback potentiometer, so you can track the actual position of the gripper paddles. This product is a kit, and assembly is required.

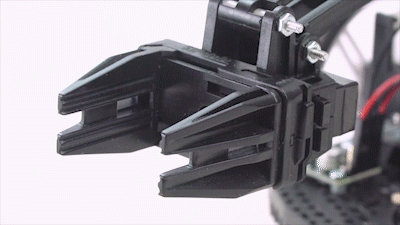

Gripper Animation

This small gripper uses a rack and pinion design with a servo-driven pinion and opposing racks to keep the gripper paddles synchronized and parallel to each other throughout its 32 mm range of motion. It includes a special micro servo with an additional wire that gives access to its feedback potentiometer, so you can track the actual position of the gripper paddles. Please note that the full range of the Micro Gripper requires servo control pulses between 0.5 ms (fully open) and 2.4 ms (fully closed), which is well beyond the standard hobby servo range 1 ms to 2 ms, so you should make sure your control electronics are capable of generating such signals if you care about getting the full range. Due to unit-to-unit variations in the servos, you might need to adjust these values for your particular gripper.

The servo is intended to be powered from 4.8 V to 6 V (nominal) battery packs or a suitable power supply in that general range, and it has a stall current of around 800 mA at 6 V. The feedback voltage ranges linearly from around 0.5 V (fully open) to 2.2 V (fully closed), meaning that there is an approximately 1:1 correspondence between servo position in microseconds and the feedback voltage in millivolts.

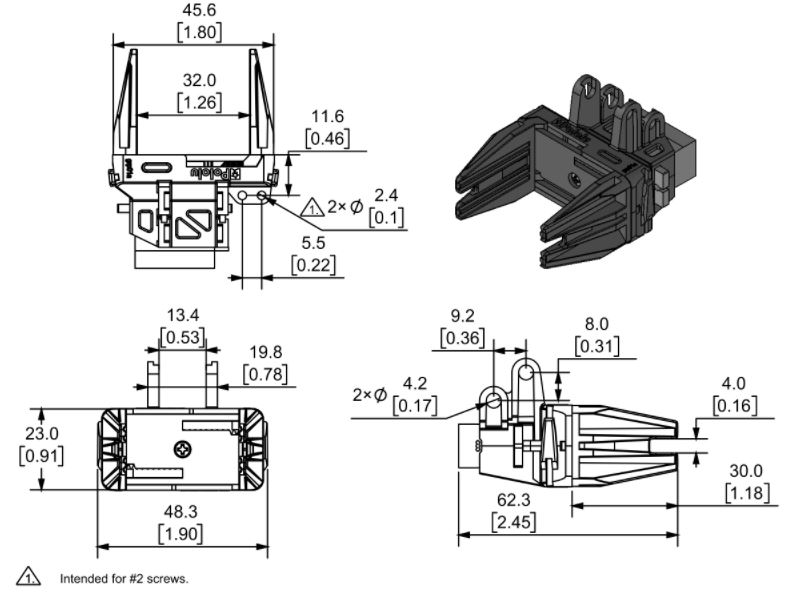

Dimensions of the Micro Gripper with Position Feedback Servo

Servo Dimensions

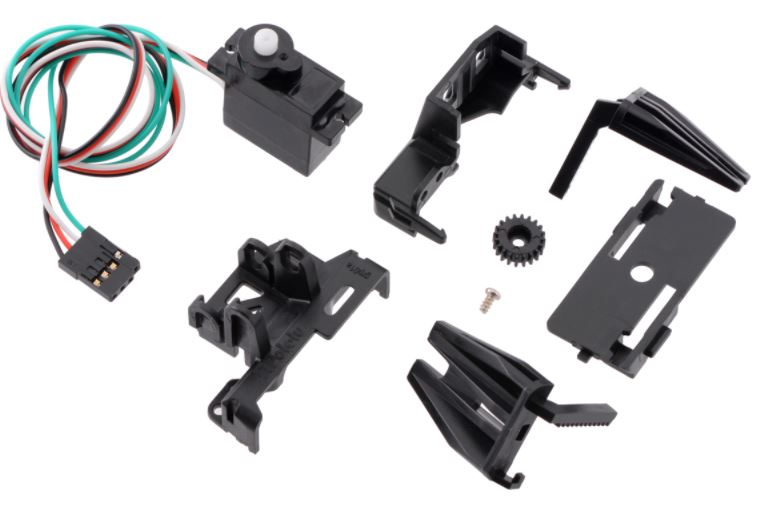

Kit contents

  • One micro servo with position feedback
  • One top micro gripper case
  • One bottom micro gripper case
  • One micro gripper plate
  • One micro gripper pinion gear
  • Two micro gripper paddles with rack

Kit Contents



 Assembly instructions can be found at Pololu here. The instructions are for their Romi robot arm of which part is for this gripper.
