Pololu Distance Sensor Sharp GP2Y0A02YK0F, 20 - 150cm

List price: £12.77
£6.39
(£7.67 UK, incl VAT) You save: £6.38 (50%)
Price in points: 1278 points
2110-644
2 g
2 item(s)
End of line
+

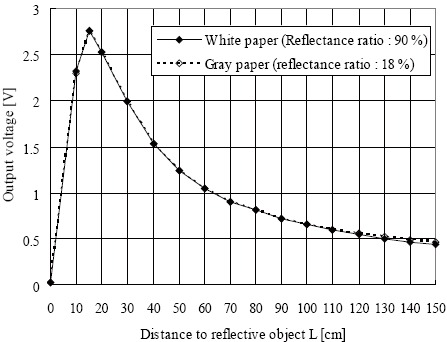

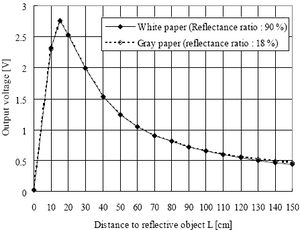

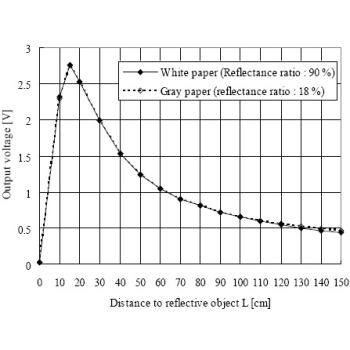

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8" to 60"); a plot of distance versus output voltage is shown below.

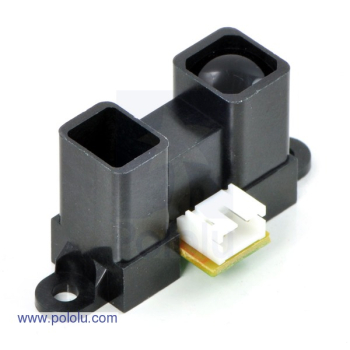

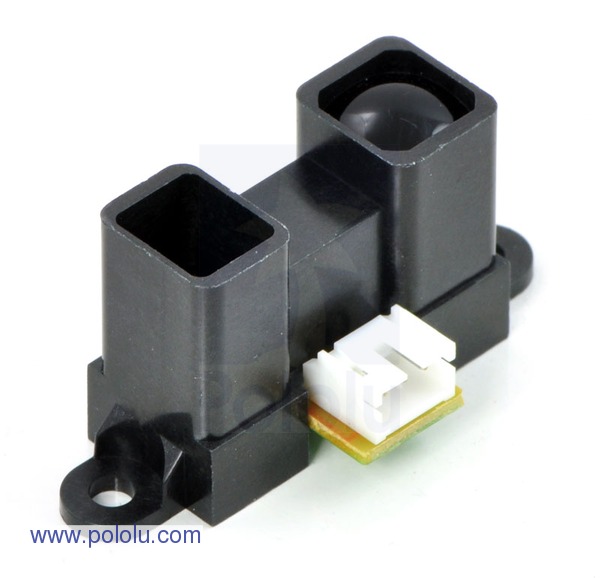

The GP2Y0A02 uses a 3-pin JST connector that connects to a 3-pin JST cable for Sharp distance sensors (not included) as shown in the picture. It is also simple to solder three wires to the sensor where the connector pins are mounted (see picture). When looking at the back, the three connections from left to right are power, ground, and the output signal.

Feature summary

  • operating voltage: 4.5 V to 5.5 V
  • average current consumption: 33 mA (typical)
  • distance measuring range: 20 cm to 150 cm (8" to 60")
  • output type: analog voltage
  • output voltage differential over distance range: 2.0 V (typical)
  • response time: 38 ± 10 ms
  • package size: 29.5×13.0×21.5 mm (1.16×0.5×0.85")
  • weight: 4.8 g (0.17 oz)

Linearizing the output

The relationship between the sensor’s output voltage and the inverse of the measured distance is approximately linear over the sensor’s usable range. The GP2Y0A02YK data sheet (703k pdf) contains a plot of analog output voltage as a function of the inverse of distance to a reflective object. You can use this plot to convert the sensor output voltage to an approximate distance by constructing a best-fit line that relates the inverse of the output voltage (V) to distance (cm).

Alternative Sharp Distance Sensors

We carry a shorter-range version of this sensor as well: the Sharp GP2Y0A21YK0F analog distance sensor (10 – 80 cm code, see related products below). These analog distance sensors all have identical pin-outs and very similar packages, making it easy to swap one version for another should your application requirements change.



Note: The manufacturer recommends you insert a bypass capacitor of 10 uF or more between Vcc and GND near this sensor to stabilize your power supply line.
