Pololu Ball Caster 1/2 inch Plastic Ball

Write a review
List price: £2.71
£2.16
(£2.59 UK, incl VAT) You save: £0.55 (20%)
Price in points: 432 points
4262-111
5 g
13 item(s)
End of Line
+ −
Add to wish list

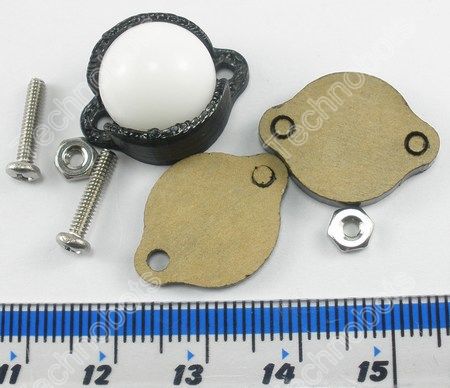

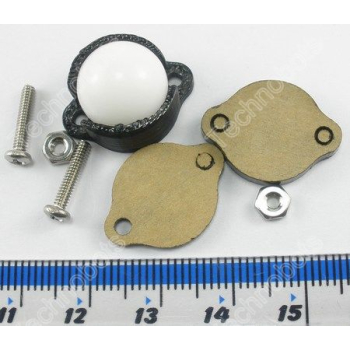

This ball caster kit includes a black ABS housing, a 12.7mm diameter plastic ball, two spacers (1.6mm and 3.2mm thick), and two #2 screw sets.

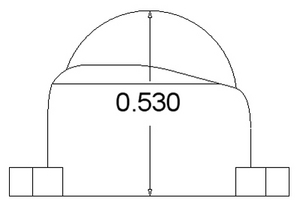

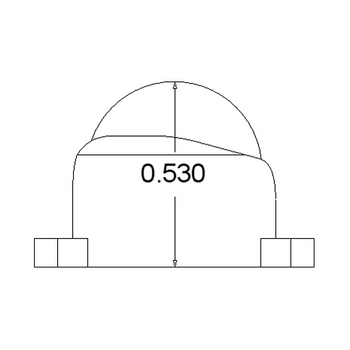

The total height of this ball caster is 13.5mm with no spacers. You can also adjust the height by adding the spacers.

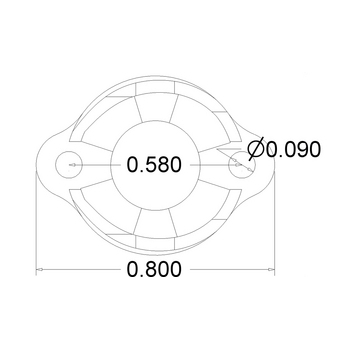

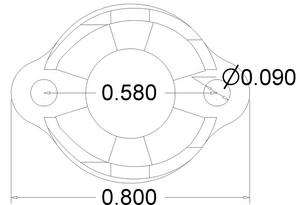

The ball caster can be mounted to a chassis by the two screw sets included in the kit. The distance between the two screw holes is 14.73mm.

No posts found

Write a review

what is the load rating of these castors?

Asked by kelly webb | 14/03/2012, 19:21 | 1 answer(s)
