Pololu AltIMU-10 V3 Gyro, Accelerometer, Compass, and Altimeter

List price: £40.34
£20.17
(£24.20 UK, incl VAT) You save: £20.17 (50%)
Price in points: 4035 points
3340-203
1 g
1 item(s)
End of line
+

This new V3 offers a number of improvements arising from the use of newer MEMS sensors, including a wider maximum magnetic sensing range and better gyroscopic accuracy and stability. This version also adds a pin for changing the sensor slave addresses, allowing two AltIMUs to be on the same I²C bus. The AltIMU-10 v3 is pin-compatible with the original AltIMU-10, but changes in I²C addresses and configuration registers might require some changes to software written for the older version (this should not be an issue if you are using our Arduino libraries).

The Pololu AltIMU-10 v3 is an inertial measurement unit (IMU) and altimeter that features the same L3GD20D gyro and LSM303D accelerometer and magnetometer as the MinIMU-9 v3, and adds an LPS331AP digital barometer. An I²C interface accesses ten independent pressure, rotation, acceleration, and magnetic measurements that can be used to calculate the sensor’s altitude and absolute orientation. The board operates from 2.5 to 5.5 V and has a 0.1″ pin spacing.

Overview

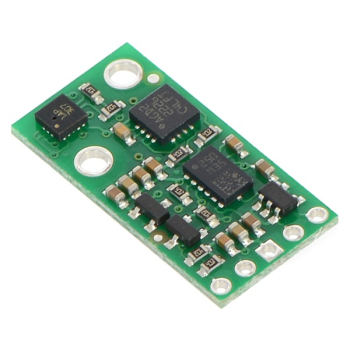

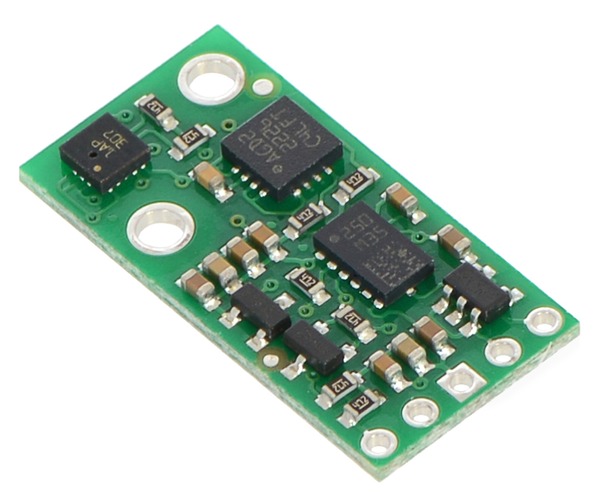

The Pololu AltIMU-10 v3 is a compact (1.0″ × 0.5″) board that combines ST’s LPS331AP digital barometer, L3GD20H 3-axis gyroscope, and LSM303D 3-axis accelerometer and 3-axis magnetometer to form an inertial measurement unit (IMU) and altimeter; we therefore recommend careful reading of the LPS331AP datasheet (453k pdf), L3GD20H datasheet (3MB pdf), and LSM303D datasheet (1MB pdf) before using this product. These sensors are great ICs, but their small packages make them difficult for the typical student or hobbyist to use. They also operate at voltages below 3.6 V, which can make interfacing difficult for microcontrollers operating at 5 V. The AltIMU-10 v3 addresses these issues by incorporating additional electronics, including a voltage regulator and a level-shifting circuit, while keeping the overall size as compact as possible. The board ships fully populated with its SMD components, including the L3GD20H, LSM303D, and LPS331AP, as shown in the product picture.

Compared to the original AltIMU-10, the v3 version offers a number of improvements arising from the use of newer MEMS sensors, including a wider maximum magnetic sensing range and better gyroscopic accuracy and stability. This version also adds a pin for changing the sensor slave addresses, allowing two AltIMUs to be on the same I²C bus. The AltIMU-10 v3 is pin-compatible with the original AltIMU-10, but changes in I²C addresses and configuration registers might require some changes to software written for the older version (this should not be an issue if you are using our Arduino libraries).

The AltIMU-10 v3 is pin-compatible with the MinIMU-9 v3 and offers the same functionality augmented by a digital barometer that can be used to obtain pressure and altitude measurements. It includes a second mounting hole and is only 0.2″ longer than the MinIMU-9 v3. Any code written for the MinIMU-9 v3 should also work with the AltIMU-10 v3.

The LPS331AP, L3GD20H, and LSM303D have many configurable options, including selectable resolutions for the barometer and dynamically selectable sensitivities for the gyro, accelerometer, and magnetometer. Each sensor also has a choice of output data rates. The three ICs can be accessed through a shared I²C/TWI interface, allowing the sensors to be addressed individually via a single clock line and a single data line. Additionally, the SA0 pin is accessible, allowing users to change the slave addresses and have two AltIMUs connected on the same I²C bus (For additional information, see the I²C Communication section below).

The nine independent rotation, acceleration, and magnetic readings provide all the data needed to make an attitude and heading reference system (AHRS), and readings from the absolute pressure sensor can be easily converted to altitudes, giving you a total of ten independent measurements (sometimes called 10DOF). With an appropriate algorithm, a microcontroller or computer can use the data to calculate the orientation and height of the AltIMU board. The gyro can be used to very accurately track rotation on a short timescale, while the accelerometer and compass can help compensate for gyro drift over time by providing an absolute frame of reference. The respective axes of the two chips are aligned on the board to facilitate these sensor fusion calculations.

The carrier board includes a low-dropout linear voltage regulator that provides the 3.3 V required by the LPS331AP, L3GD20H, and LSM303D, allowing the module to be powered from a single 2.5 V to 5.5 V supply. The regulator output is available on the VDD pin and can supply almost 150 mA to external devices. The breakout board also includes a circuit that shifts the I²C clock and data lines to the same logic voltage level as the supplied VIN, making it simple to interface the board with 5 V systems. The board’s 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Specifications

  • Dimensions: 1.0″ × 0.5″ × 0.1″ (25 mm × 13 mm × 3 mm)
  • Weight without header pins: 0.8 g (0.03 oz)
  • Operating voltage: 2.5 V to 5.5 V
  • Supply current: 6 mA
  • Output format (I²C):
    • Gyro: one 16-bit reading per axis
    • Accelerometer: one 16-bit reading per axis
    • Magnetometer: one 16-bit reading per axis
    • Barometer: 24-bit pressure reading (4096 LSb/mbar)
  • Sensitivity range:
    • Gyro: ±245, ±500, or ±2000°/s
    • Accelerometer: ±2, ±4, ±6, ±8, or ±16 g
    • Magnetometer: ±2, ±4, ±8, or ±12 gauss
    • Barometer: 260 mbar to 1260 mbar (26 kPa to 126 kPa)

Included Components

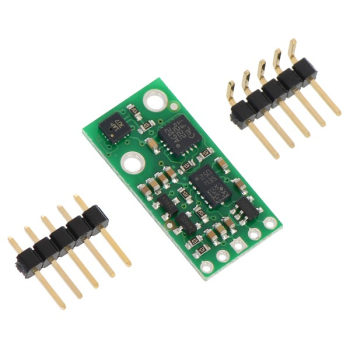

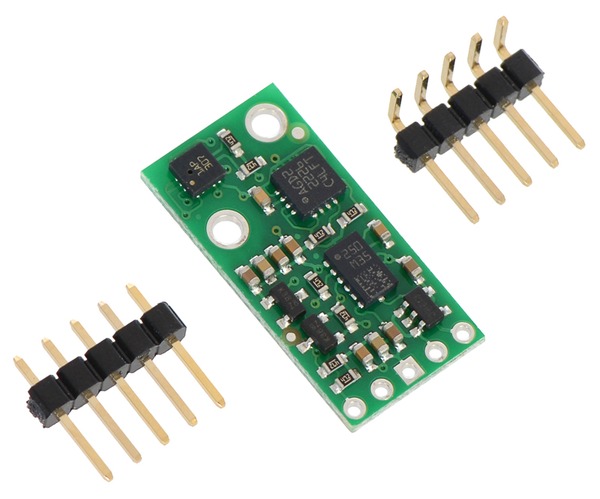

A 1×5 strip of 0.1″ header pins and a 1×5 strip of 0.1″ right-angle header pins are included, as shown in the picture below. You can solder the header strip of your choice to the board for use with custom cables or solderless breadboards or solder wires directly to the board itself for more compact installations. The board features two mounting holes that work with #2 or M2 screws (not included but available from our fixings range).

Using the AltIMU-10

Connections

A minimum of four connections are necessary to use the AltIMU-10 v3: VIN, GND, SCL, and SDA. VIN should be connected to a 2.5 V to 5.5 V source, GND to 0 volts, and SCL and SDA should be connected to an I²C bus operating at the same logic level as VIN. (Alternatively, if you are using the board with a 3.3 V system, you can leave VIN disconnected and bypass the built-in regulator by connecting 3.3 V directly to VDD.)

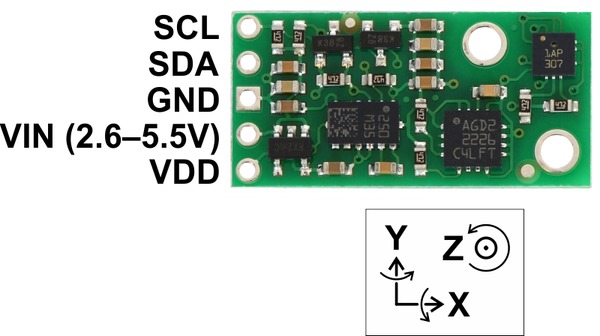

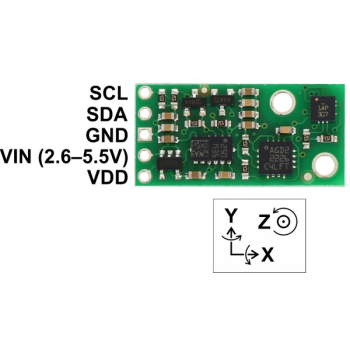

Pinout

PINDescription
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.
VIN This is the main 2.5 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C bus high bits up to this level.
VDD 3.3 V regulator output or low-voltage logic power supply, depending on VIN. When VIN is supplied and greater than 3.3 V, VDD is a regulated 3.3 V output that can supply up to approximately 150 mA to external components. Alternatively, when interfacing with a 2.5 V to 3.3 V system, VIN can be left disconnected and power can be supplied directly to VDD. Never supply voltage to VDD when VIN is connected, and never supply more than 3.6 V to VDD.
SA0 3.3V-logic-level input to determine I²C slave addresses of the three ICs (see below). It is pulled high by default through 10 kΩ resistor. This pin is not level-shifted and is not 5V-tolerant.

The CS, DEN, data ready, and interrupt pins of the LPS331AP, L3GD20H, and LSM303D are not accessible on the AltIMU-10 v3. In particular, lack of the CS pin means that the optional SPI interface of these ICs is not available. If you want these features, consider using our LPS331AP carrier, L3GD20H carrier, and LSM303D carrier boards.

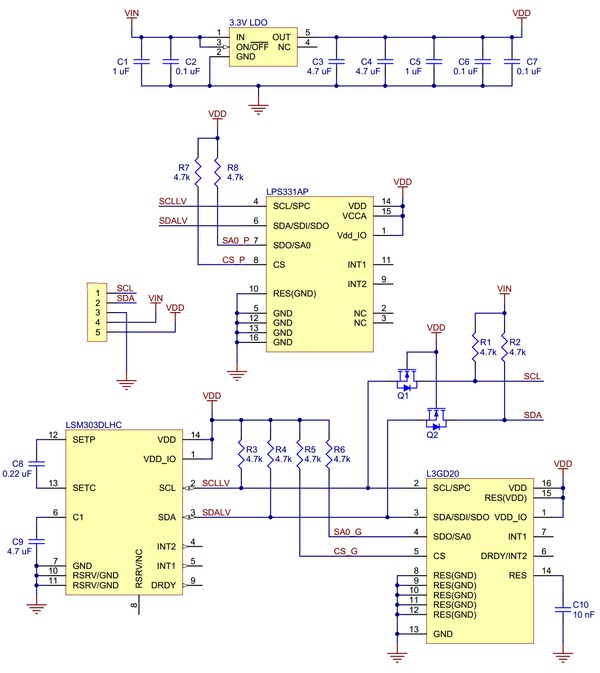

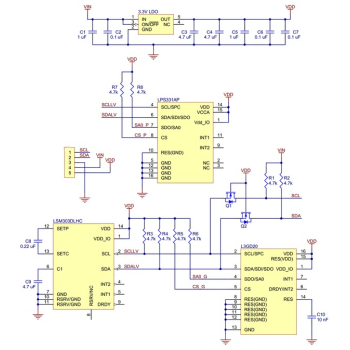

The above schematic shows the additional components the carrier board incorporates to make the LPS331AP, L3GD20, and LSM303DLHC easier to use, including the voltage regulator that allows the board to be powered from a single 2.5 V to 5.5 V supply and the level-shifter circuit that allows for I²C communication at the same logic voltage level as VIN.

I²C Communication

I²C Communication

The LPS331AP’s barometer, the L3GD20H’s gyro, and the LSM303D’s accelerometer and magnetometer can be queried and configured through the I²C bus. Each of the four sensors acts as a slave device on the same I²C bus (i.e. their clock and data lines are tied together to ease communication). Additionally, level shifters on the I²C clock (SCL) and data lines (SDA) enable I²C communication with microcontrollers operating at the same voltage as VIN (2.5 V to 5.5 V). A detailed explanation of the protocols used by each device can be found in the LPS331AP datasheet (453k pdf), the L3GD20H datasheet (3MB pdf), and the LSM303D datasheet (1MB pdf). More detailed information about I²C in general can be found in NXP’s I²C-bus specification (371k pdf).

The L3GD20H, LSM303D, and LPS331AP each have separate slave addresses on the I²C bus. The board connects SA0 pins of the three ICs together and pulls them all to VDD through a 10 kΩ resistor. You can drive the SA0 pin low to change the slave address. This allows you to have two AltIMUs (or an AltIMU v3 and a MinIMU v3) connected on the same I²C bus. The following table shows the slave addresses of the sensors:

SensorSlave Address (default)Slave Address (SA0 driven low)
L3GD20H (gyro) 1101011b 1101010b
LSM303D (accelerometer and magnetometer) 0011101b 0011110b
LPS331AP (barometer) 1011101b 1011100b

All three chips on the AltIMU-10 v3 are compliant with fast mode (400 kHz) I²C standards as well as with the normal mode.

Sample Code

Pololu has written a basic LPS331 Arduino library, L3GD20 Arduino library, and LSM303 Arduino library that make it easy to interface the AltIMU-10 with an Arduino. They also make it simple to configure the sensors and read the raw pressure, gyro, accelerometer, and magnetometer data.

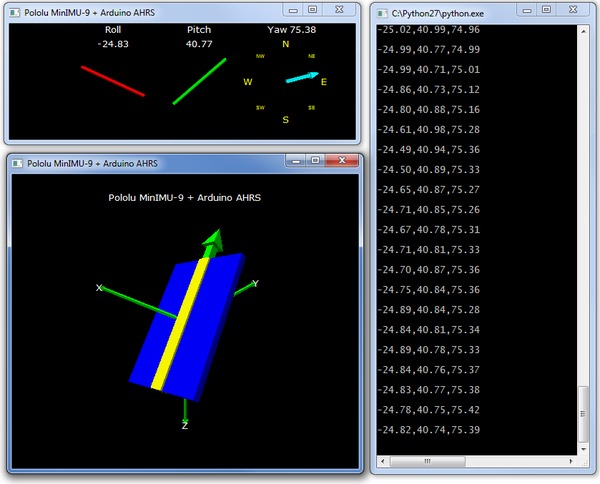

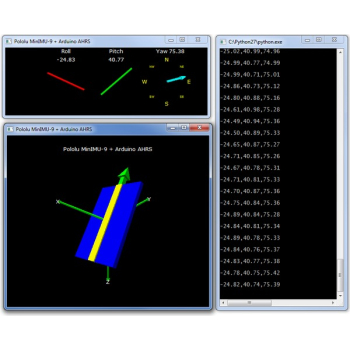

For a demonstration of what you can do with this data, you can turn an Arduino connected to a AltIMU-10 into an attitude and heading reference system, or AHRS, with this Arduino program. It uses the data from the AltIMU-10 to calculate estimated roll, pitch, and yaw angles, and you can visualize the output of the AHRS with a 3D test program on your PC (as shown in a screenshot above). This software is based on the work of Jordi Munoz, William Premerlani, Jose Julio, and Doug Weibel.

Protocol Hints

The datasheets provide all the information you need to use the sensors on the AltIMU-10, but picking out the important details can take some time. Here are some pointers for communicating with and configuring the LPS331AP, L3GD20, and LSM303DLHC that we hope will get you up and running a little bit faster:

  • The pressure sensor, gyro, accelerometer, and magnetometer are all off by default. You have to turn them on by setting the correct configuration registers.
  • You can read or write multiple pressure sensor, gyro, or accelerometer registers in a single I²C command by asserting the most significant bit of the register address to enable address auto-increment.
  • The magnetometer will not update its data until all 6 data bytes have been read during a single I²C transfer. All the bytes can be read in the same transfer using the magnetometer’s automatic sub-address updating feature (this feature is enabled by default).
  • The pressure sensor has a 24-bit pressure reading. The gyro, accelerometer, and magnetometer all output readings in a 16-bit format (obtained by combining the values in two 8-bit registers for each axis), but only the gyro readings contain 16 bits of precision. The accelerometer and magnetometer readings contain a maximum of 12 bits of precision; for the accelerometer, at least the lowest 4 bits of the output values are always 0, and for the magnetometer, the highest 4 bits of the output values are always 0.
  • The accelerometer gives low-resolution 10-bit readings by default (the lowest 6 bits of the output are always 0). To get the full 12-bit resolution, you must set the HR (high resolution) bit in the CTRL_REG4_A register.
  • The LSM303DLHC combines an accelerometer and a magnetometer made by separate manufacturers into one IC, so there are fairly significant differences in their features, functionality, and interfaces. The interfaces of the LPS331AP and L3GD20 are similar to that of the accelerometer in the LSM303DLHC.

File downloads

AltIMU-10 v3 schematic diagram (207k pdf)
Printable schematic diagram of the AltIMU-10 v3.
L3GD20H datasheet (3MB pdf)
Datasheet for the ST L3GD20H three-axis digital-output gyroscope.
LSM303D datasheet (1MB pdf)
Datasheet for the ST LSM303D 3D accelerometer and 3D magnetometer module.
LPS331AP datasheet (453k pdf)
Datasheet for the ST LPS331AP MEMS pressure sensor.
AN4159: hardware and software guidelines for the LPS331AP (663k pdf)
Application note from ST with hardware and software guidelines for use of the LPS331AP pressure sensor.
UM10204 I²C-bus specification and user manual (371k pdf)
The official specification for the I²C-bus, which is maintained by NXP.

Manufacturer's Details

Manufacturer's SKU :
2469
Manufacturer:
Pololu

No posts found

Write a review

I am not getting correct altitudes or temperatures from the AltIMU-10 using the examples in the Pololu library for the LPS331AP linked to on the Technobots site (https://github.com/pololu/lps331-arduino). Pressure output appears to be about right. Sample output: p: 983.35 mbar a: 251.93 m t: 164.69 deg C p: 983.27 mbar a: 252.63 m t: 164.67 deg C p: 983.37 mbar a: 251.71 m t: 164.70 deg C I have tried a number of different versions of Arduino software and a number of different Arduino boards plus a Teensy 3.1 board. Everything else about the board seems fine and it works well as an AHRS using different software. I have a reasonable to good level of electronics, C++ and experience using Arduino, Teensy, other AHRS's and various sensors. Thank you.

Asked by Dave | 02/01/2014, 22:49 | 3 answer(s)
