MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixing

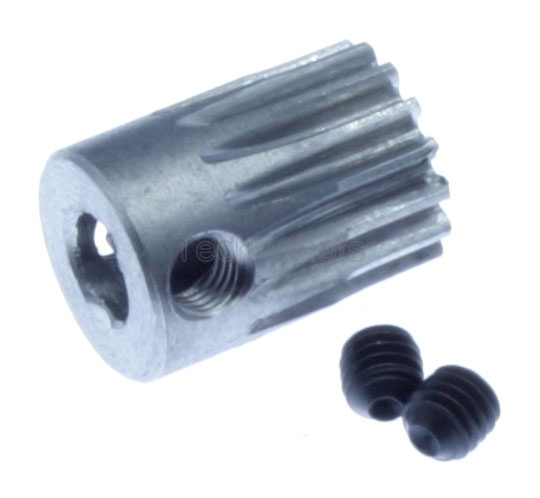

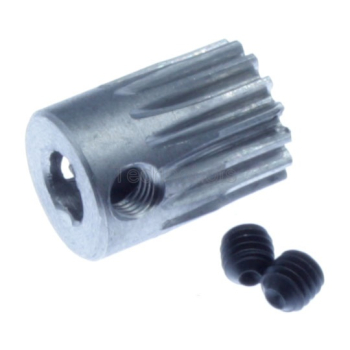

MOD 0.5, 15 Tooth Steel Model Gear. Note: Hobbed type pinion with cutter run out after the face width length
MOD 0.5, 15 Tooth Steel Model Gear. Note: Hobbed type pinion with cutter run out after the face width length
| Part No. | 4905-015 |
| Code | SSN05/15B |
| Type | B |
| No. of Teeth | 15 |
| Pitch Ø dp | 7.5 |
| Bore Ø H8 | 4 |
| Hub/Boss Ø dm | 9 |
| Outside Ø de | 8.5 |
| O/A Width A | 12 |
| Face Width B | 5 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
