MakerBeam T-Slot Nut Set - Pack of 25 with Hex Key

£12.06
(£14.47 UK, incl VAT)
Price in points: 2412 points
4446-038
35 g
In stock
+

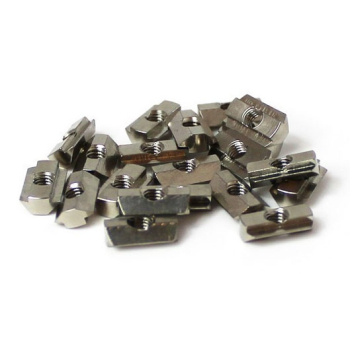

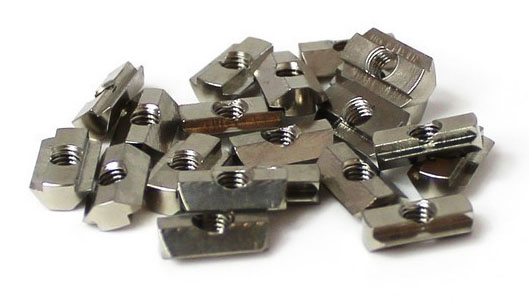

The MakerBeam T-slot nut is made of stainless steel and was specially designed to slide into the T-slot grooves of the MakerBeam aluminum profile.
The T-slot nut is great to fasten brackets or corner cubes. For these two purposes the nuts come with two types of bolts.

The first type is a button head socket screw (ISO7380, M3, 4mm, A2) and is meant to be used with brackets. The second is the flat head countersunk socket screw (DIN7991, M3, 4mm, A2) and is meant to be used with corner cubes. Do be careful with the bolts that come with the corner cubes. 4mm or 6mm is hard to tell apart!

We love the fact that you are now able to fasten corner cubes midway. Try it yourself.
Do note that because of the 4mm thread the load bearing capacity of structures will be limited.

Package contains:
- 25 T-slot nuts for MakerBeam
- 25 bolts  ISO7380, M3, 4mm, A2
- 25 bolts DIN7991, M3, 4mm, A2



Manufacturer's Details

Manufacturer's SKU :
101619
Manufacturer:
MakerBeam

No posts found

Write a review

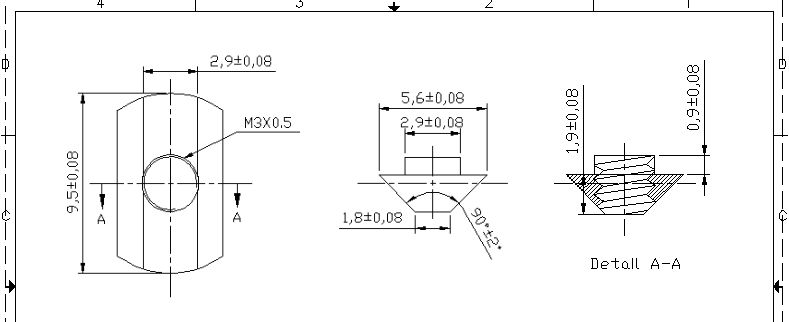

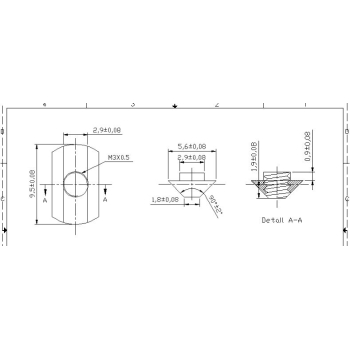

how long are these nuts please ? is there a drawing available ?

Asked by chris stevens | 08/02/2016, 16:11 | 1 answer(s)
