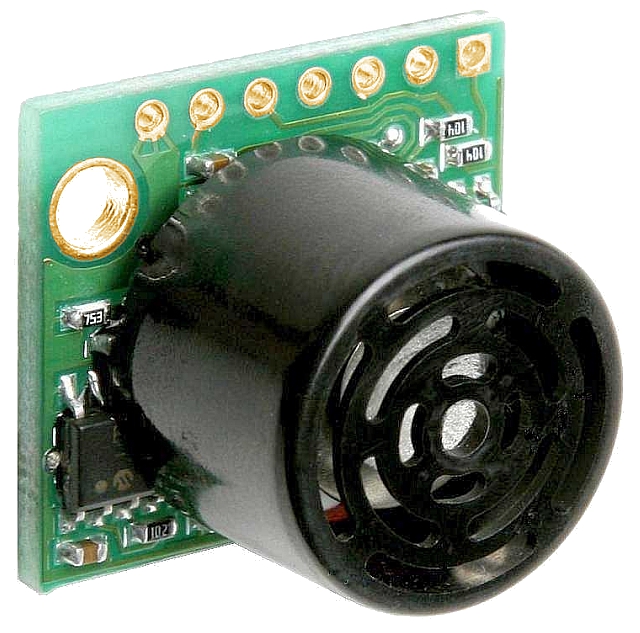

LV-ProSonar-EZ0, Maxbotix MB1004

£24.11
(£28.93 UK, incl VAT)
Price in points: 4822 points
3801-910
6 g
11 item(s)
End of line
+
Our quantity discounts:
Quantity 10+ 25+
Price £21.70 £19.77

These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV‑ProxSonar‑EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV‑ProxSonar‑EZ detection zone.

The LV‑ProxSonar‑EZ0 has a detection zone of ~7 feet and will allow for 6+ simultaneous sensors.

Component Overview

  • Resolution of 1 inch
  • ~2.5 second target acquire time*
  • ~1.5 second target release time*
  • Automatic multi-sensor operation
  • People sensor
  • USB interface
  • Maximum reported range of 254 inches (645 cm)
  • ~7 foot proximity detection zone (84 inches or 213 cm)
  • Run up to 6+ sensors in the same environment
  • Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from sensor outputs: Serial and Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Longest detection zone

Links

Quick Start Guide

Downloads

Manufacturer's Details

Manufacturer's SKU :
MB1004
Manufacturer:
Maxbotix
