Dual Colour 64 LED Med Matrix Serial I/F

List price: £30.11
£10.04
(£12.05 UK, incl VAT) You save: £20.07 (67%)
Price in points: 2008 points
2110-803
37 g
2 item(s)
End of Line
+
Add to wish list

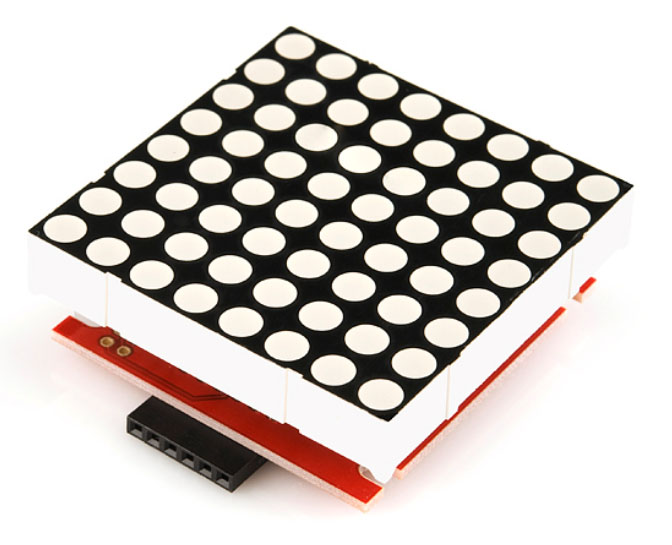

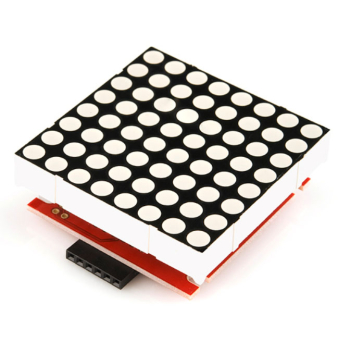

This is the medium sized LED Matrix with a backpack from Sparkfun COM-00759 that has been designed to take SPI serial input and display any graphics you pass it. All the refreshing and communication control is taken care of by the backpack. It's even reprogrammable! Off, Red, Green, and Yellow colors are available.

Unit comes with an Red/Green Matrix assembled with a RG Matrix Backpack Controller.

Check out the LED Coffee Table tutorial!

Note: We have had a play with one of these displays and found that it is different in appearence to that shown in the photo. We also suspect that the PCB markings for the SPI input and output connections are incorrectly marked -  'SPI Input' is actually SPI Output and visa versa.  Sparkfun to confirm.

Dimensions:

  • 51x51mm square
  • Max width of backpack including connector pins - 26mm
