Arduino ProtoShield Kit

List price: £12.05
£10.44
(£12.53 incl VAT) You save: £1.61 (13%)
Price in points: 2088 points
3807-427
1 item(s)
End of line
+

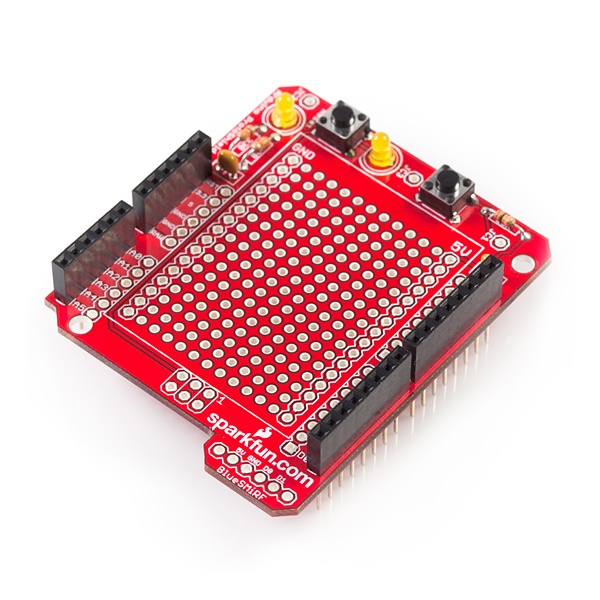

Description: Riding on the waves of the very popular Arduino USB board is this small prototyping shield. Originally spawned with collaboration between the folks at SFE and ITP @ NYU, the ProtoShield mates with the Arduino USB board and gives the user a small soldering area, two general LEDs, access to a BlueSMiRF socket, a general pushbutton switch, and most important of all - the Arduino reset switch is brought to the top level. A ProtoShield quickstart guide is available!

This comes in kit form and must be soldered together by the end user. Please note - we do not ship assembly instructions, but you can find a big, clean photographed assembly guide here! There are a few tutorials on assembly listed below. All soldering is through-hole (relatively easy) but always check your component orientation before soldering!

The kit is pictured with the bread-board option. We highly recommend this breadboard!

Kit Includes:

  • 1x ProtoShield bare PCB
  • 2x Stackable Headers 6-pin
  • 2x Stackable Headers 8-pin
  • 2x 5mm Basic Yellow LEDs
  • 2x 330 Ohm resistors
  • 1x 10k resistor
  • 2x Momentary push buttons
  • 2x 0.1uF Ceramic Capacitors

Features:

  • All Arduino pins are brought to the top level
  • 5V, GND, and Vin pins are exposed as well
  • BlueSMiRF socket for wireless communication between Arduinos
  • 2 general use LEDs
  • 1 general use button
  • Reset button brought to top level

Documents:

Standalone Circuit Board: BatchPCB: Arduino ProtoShield

Manufacturer's Details

Manufacturer's SKU :
DEV-07914
Manufacturer:
Sparkfun
