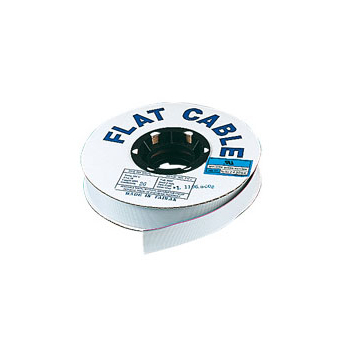

26-Way Ribbon cable in grey for use with all styles of IDC connectors.
- Consists of parallel stranded tinned copper wire conductors laminated between layers of PVC film to form a flat ribbon cable
- May be split into individual cores
- Conductor spacing 0.05in
- Grey cable has red identification band
- Fully UL approved to style UL2651
- Supplied per metre or on reels of 30m
Conductor: 7/0.127mm tin plated copper (28AWG)
Conductor rating: 1A 300V per conductor
Pitch: 0.05in (1.27mm)
Conductor resistance: 235Ω/Km (max.)
Capacitance: 46pF/m
Temperature range: –20°C to +105°C
