3/8" (06B) British Standard pitch sprockets. Manufactured in Steel EN8, 080M40/080M46, C45

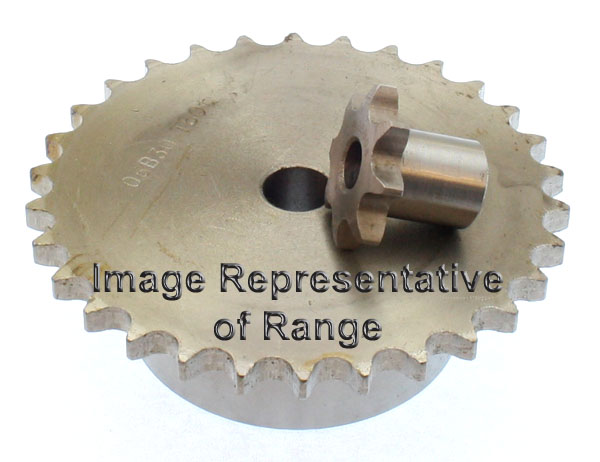

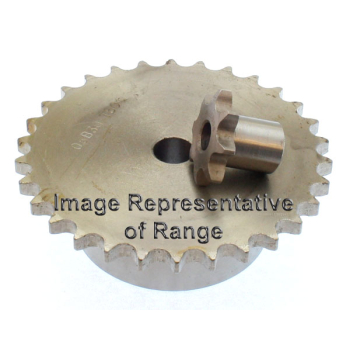

06B Steel Chain Sprocket 3/8" - 30T
06B Steel Chain Sprocket 3/8" - 30T
| Part No. | 4806-030 |
| Code | 3SR30 |
| No. teeth | 30 |
| Outside dia. de | 94.7 |
| Pitch dia. dp | 91.12 |
| Boss dia. | 60 |
| Bore D1* | 12 |
| Overall Width A | 30 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
