Save 53%

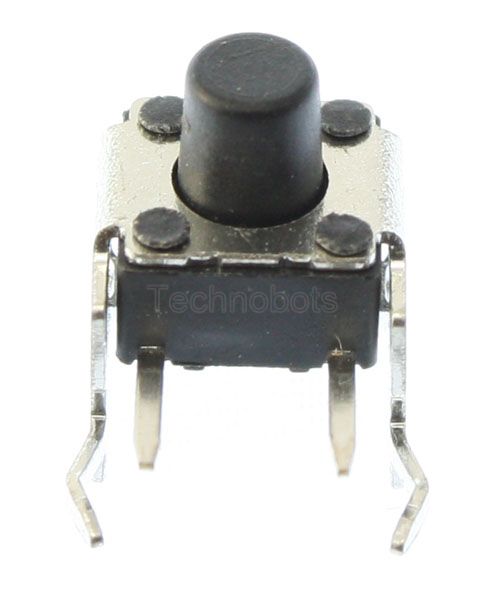

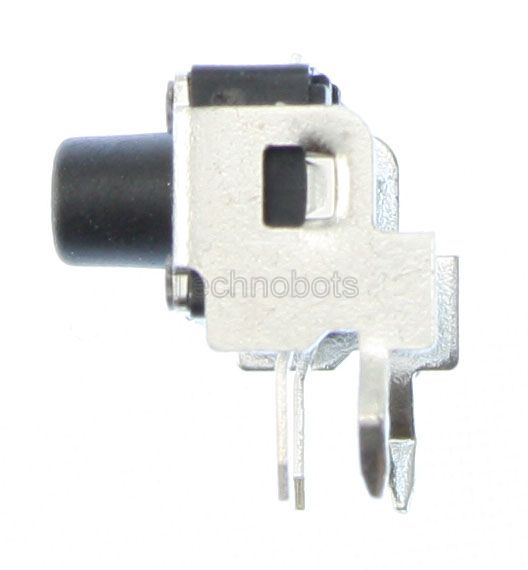

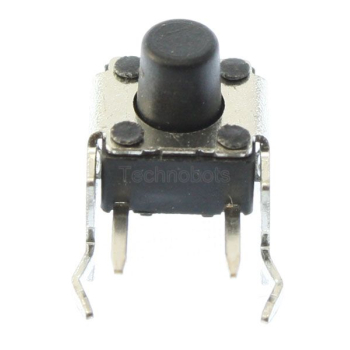

Tactile Switch Right Angle 5.85mm

List price: £0.19
£0.09
(£0.11 UK, incl VAT) You save: £0.10 (53%)
Price in points: 18 points
1613-431
1 g
28 item(s)
End of Line
+ −

Minimum quantity for "Tactile Switch Right Angle 5.85mm" is 7.

Add to wish list
Similar to 1613-430 but with a slightly longer button head.

Dimensions 7.4 x 6.5 x 7mm
Pitch 4.5 x 2.5 x 7mm
Contact rating 50mA, 12V dc
Initial contact resistance Operating force 100±50gf
Travel 0.25mm
Insulation resistance 100MOhms min.
Life expectancy 500,000 operations (electrical)
Operating temperature range -25 to +70°C
