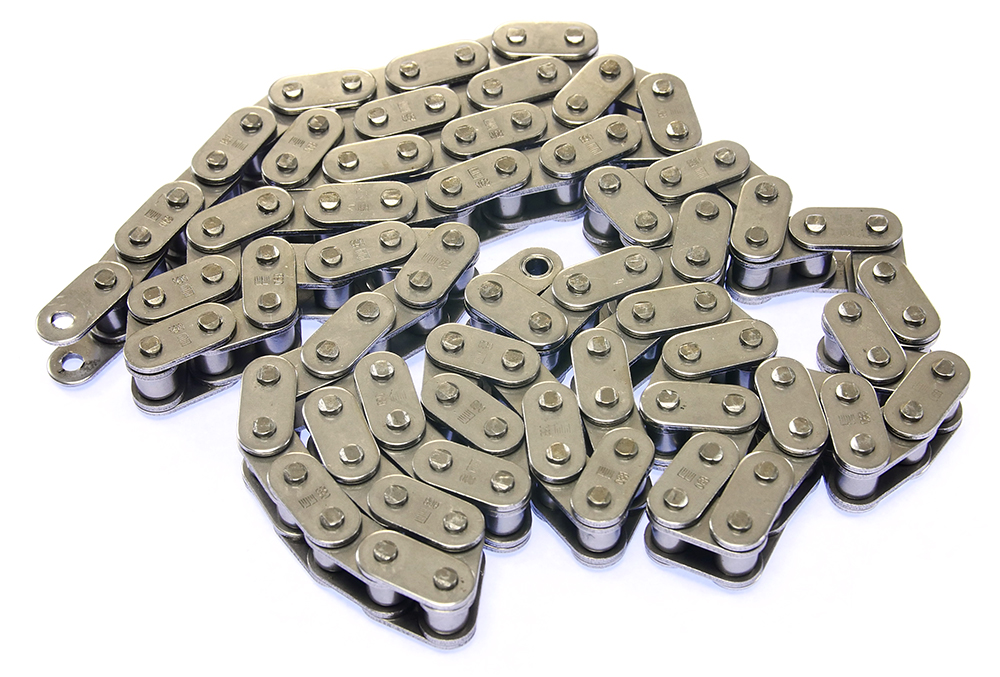

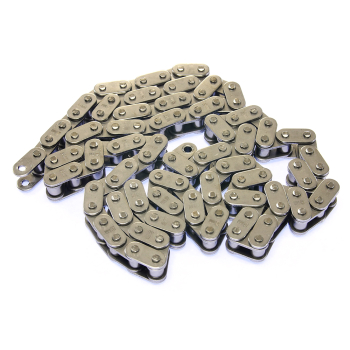

Tbot Chain 08B 1/2" / metre

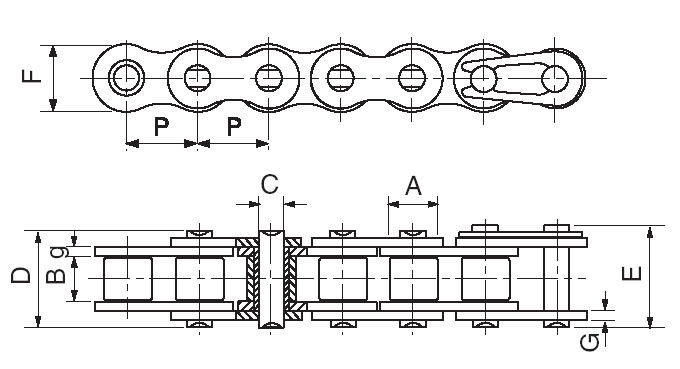

Specification:
Pitch P: 12.7mm
Roller diameter A: 8.51mm
Width between inner plates B: 7.75mm
Pin diameter C: 4.45mm
Pin Length D: 16.7mm
Inner plate height F: 11.8mm
Minimum tensile strength: 18kN
Average tensile strength: 19.4kN
29/02/2012, 07:38
"Gordon,
We simply supply cut lengths of chain. All you need is a hammer and pin punch to break chain. Use a chain link to re-join chain."
– Admin
29/02/2012, 03:46
"Hi there, if I was to buy a metre length of this chain would you be able to supply it as a complete closed loop? Is there an extra charge for this? I don't have the facility handy to join the chain ends.
Cheers!"
– Gordon
05/05/2011, 07:58
"Jonny,
Certainly does as the sprockets are also 08B"
– Admin
04/05/2011, 22:47
"hi, will this chain work with the tbots 1/2 steel sprockets?
thanks"
– Jonny Adam
