Dimensions
Part No. Type Teeth PCD De Df Dm Fw L Pw K Bore d Stocked
4630-018 A 18 11.63 11.13 16 13 8 17.5 11 M3 5mm Yes
4630-020 A 20 12.93 12.42 17 13 8 17.5 11 M3 5mm Yes
4630-021 B 21 13.59 13.08 18 13 8 17.5 11 M3 5mm No
4630-022 B 22 14.22 13.72 19 13 8 17.5 11 M3 5mm No
4630-024 B 24 15.52 15.01 20 13 8 17.5 11 M3 5mm No
4630-028 B 28 18.11 17.6 22 13 8 17.5 11 M3 5mm No
4630-030 B 30 19.4 18.89 24 13 8 17.5 11 M3 5mm Yes
4630-032 B 32 20.7 20.19 25 13 8 17.5 11 M3 5mm No
4630-036 B 36 23.29 22.78 28 13 8 17.5 11 M3 5mm No
4630-040 C 40 25.88 25.37 30 17 8 17.5 11 M3 5mm Yes
4630-042 C 42 27.18 26.67 31 17 8 17.5 11 M3 5mm No
4630-044 C 44 28.45 27.94 33 17 8 17.5 11 M3 5mm No
4630-048 C 48 31.04 30.53 35 17 8 17.5 11 M3 5mm Yes
4630-060 C 60 38.81 38.3 43 17 8 17.5 11 M3 6mm Yes
4630-065 C 65 42.04 41.53 46 17 8 17.5 11 M3 6mm No
4630-072 C 72 46.56 46.05 51 17 8 17.5 11 M3 6mm No
4630-080 C 80 51.74 51.23 56 17 8 17.5 11 M3 6mm Yes
4630-090 C 90 58.22 57.71 63 17 8 17.5 11 M3 6mm No
4630-100 C 100 64.67 64.61 69 17 8 17.5 11 M3 6mm No
4630-110 C 110 71.15 70.63 75 17 8 17.5 11 M3 6mm No
4630-120 C 120 77.62 77.11 82 17 8 17.5 11 M3 6mm No
4630-130 C 130 84.07 83.57 88 17 8 17.5 11 M3 6mm No

MXL025 Timing Pulley

Moulded imperial timing pulleys with a pitch of 2.032mm (0.08") with either an Aluminium or Brass insert complete with a M3 grub screw for fixing to the shaft. Made from a glass filled Polycarbonate. Use with our MXL025 belts

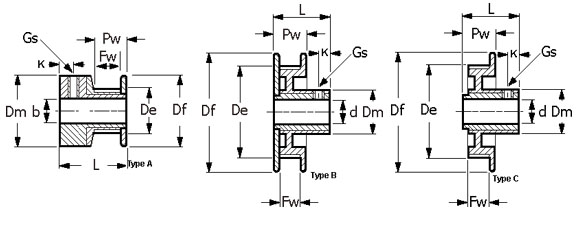

The above table refers to the following images (Type A, B and C)



View as:  List
Sort by:  Default
MXL025 Plastic Timing Pulley 18 Teeth Alu Ins

Part No.: 4630-018

Shipping Weight: 3.00 g.

£5.52 (£6.62 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1104 Techno Points
MXL025 Plastic Timing Pulley 20 Teeth Alu Ins

Part No.: 4630-020

Shipping Weight: 3.00 g.

£5.64 (£6.77 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1128 Techno Points
MXL025 Plastic Timing Pulley 21 Teeth Alu Ins

Part No.: 4630-021

Shipping Weight: 4.00 g.

£5.65 (£6.78 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1130 Techno Points
MXL025 Plastic Timing Pulley 22 Teeth Alu Ins

Part No.: 4630-022

Shipping Weight: 4.00 g.

£5.69 (£6.83 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1138 Techno Points
MXL025 Plastic Timing Pulley 24 Teeth Alu Ins

Part No.: 4630-024

Shipping Weight: 5.00 g.

£5.72 (£6.86 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1144 Techno Points
MXL025 Plastic Timing Pulley 28 Teeth Alu Ins

Part No.: 4630-028

Shipping Weight: 6.00 g.

£6.39 (£7.67 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1278 Techno Points
MXL025 Plastic Timing Pulley 30 Teeth Alu Ins

Part No.: 4630-030

Shipping Weight: 7.00 g.

£6.39 (£7.67 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1278 Techno Points
MXL025 Plastic Timing Pulley 32 Teeth Alu Ins

Part No.: 4630-032

Shipping Weight: 12.00 g.

£6.44 (£7.73 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1288 Techno Points
MXL025 Plastic Timing Pulley 36 Teeth Alu Ins

Part No.: 4630-036

Shipping Weight: 14.00 g.

£6.74 (£8.09 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1348 Techno Points
MXL025 Plastic Timing Pulley 40 Teeth Brass Ins

Part No.: 4630-040

Shipping Weight: 17.00 g.

£5.88 (£7.06 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1176 Techno Points
MXL025 Plastic Timing Pulley 42 Teeth Brass Ins

Part No.: 4630-042

Shipping Weight: 19.00 g.

£6.14 (£7.37 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1228 Techno Points
MXL025 Plastic Timing Pulley 44 Teeth Brass Ins

Part No.: 4630-044

Shipping Weight: 19.00 g.

£6.17 (£7.40 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1234 Techno Points
MXL025 Plastic Timing Pulley 48 Teeth Brass Ins

Part No.: 4630-048

Shipping Weight: 20.00 g.

£6.24 (£7.49 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1248 Techno Points
MXL025 Plastic Timing Pulley 60 Teeth Brass Ins

Part No.: 4630-060

Shipping Weight: 20.00 g.

£6.28 (£7.54 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1256 Techno Points
MXL025 Plastic Timing Pulley 65 Teeth Brass Ins

Part No.: 4630-065

Shipping Weight: 21.00 g.

£7.48 (£8.98 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1496 Techno Points
MXL025 Plastic Timing Pulley 72 Teeth Brass Ins

Part No.: 4630-072

Shipping Weight: 23.00 g.

£8.05 (£9.66 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1610 Techno Points
MXL025 Plastic Timing Pulley 80 Teeth Brass Ins

Part No.: 4630-080

Shipping Weight: 24.00 g.

£8.06 (£9.67 inc tax)
In stock
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1612 Techno Points
MXL025 Plastic Timing Pulley 90 Teeth Brass Ins

Part No.: 4630-090

Shipping Weight: 26.00 g.

£7.69 (£9.23 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1538 Techno Points
MXL025 Plastic Timing Pulley 100 Teeth Brass Ins

Part No.: 4630-100

Shipping Weight: 28.00 g.

£7.74 (£9.29 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1548 Techno Points
MXL025 Plastic Timing Pulley 110 Teeth Brass Ins

Part No.: 4630-110

Shipping Weight: 30.00 g.

£8.32 (£9.98 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1664 Techno Points
MXL025 Plastic Timing Pulley 120 Teeth Brass Ins

Part No.: 4630-120

Shipping Weight: 40.00 g.

£8.38 (£10.06 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1676 Techno Points
MXL025 Plastic Timing Pulley 130 Teeth Brass Ins

Part No.: 4630-130

Shipping Weight: 50.00 g.

£8.49 (£10.19 inc tax)
Out of Stock
Transmission Special Order Product
Normally dispatched within 3-7 days
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025... Read More
1698 Techno Points
