Powered Wheel Hub Motors

The HUB-ee is a type of robot servo but designed for wheels, in fact it is a wheel, but it is also a motor, a sensor and a motor controller.

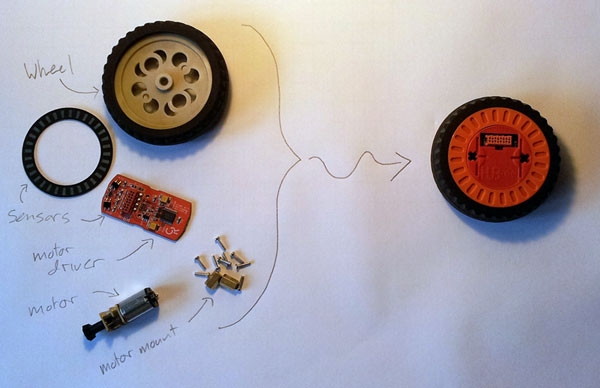

When you want to add wheels to your robot you would normally start with a whole collection of parts: The motor and gearbox, a motor driver board, and maybe some sensors for measuring wheel speed and a controller to count revolutions or provide closed loop speed control.

Creative Robotics thought it would be handy if you could just buy a wheel that had all of those things build in so they set about designing one and the result is the HUB-ee - just bolt it onto a chassis, apply power and away you go!



  • Removable 12mm gearmotor - available in a range of gear ratios (currently available 20:1 and 30:1)
  • Integrated, open source PCB with:
    • Motor driver IC
    • 32 stripe (128 counts per revolution) quadrature encoder
  • Designed for tyres or tank tracks
  • Two internal threaded inserts (metric M3 or imperial 4/40) make it easy to bolt on to a chassis.
  • LEGO®
  • Compatible mounting sockets (with a Mindstorms NXT compatible PCB coming soon!)

They are easy to take apart so you can remove or replace the motor or electronics, and we are developing a range of different circuit boards with features ranging from LEGO NXT compatibility to full closed loop speed control (so you can plug it in and control it as easily as a hobby servo).

Pronunciation? ... It's HUB as in wheel hub, with an ee as in e-mail.

LEGO®is a trademark of the LEGO Group of companies




HUB-ee BMD-S Powered Wheel Hub - 120:1 Metric

Part No.: 1453-050

Shipping Weight: 65.00 g.

£19.95 (£23.94 inc tax)
Out of Stock
Stocks due in 2-3 weeks
Overview A HUB-ee wheel with a 120:1 gear reduction, M3 metric mounting threads and BMS-S PCB so it has an on board motor driver and quadrature encoder.... Read More
3990 Techno Points

HUB-ee BMD-S Powered Wheel Hub - 180:1 Metric

Part No.: 1453-051

Shipping Weight: 65.00 g.

£19.95 (£23.94 inc tax)
In stock
Overview A HUB-ee wheel with a 180:1 gear reduction, M3 metric mounting threads and BMS-S PCB so it has an on board motor driver and quadrature encoder.... Read More
3990 Techno Points

HUB-ee BMD-S Powered Wheel Hub - 120:1 Imperial

Part No.: 1453-052

Shipping Weight: 65.00 g.

£19.95 (£23.94 inc tax)
In stock
Overview A HUB-ee wheel with a 120:1 gear reduction, 4/40 imperial mounting threads and BMS-S PCB so it has an on board motor driver and quadrature... Read More
3990 Techno Points

HUB-ee BMD-S Powered Wheel Hub - 180:1 Imperial

Part No.: 1453-053

Shipping Weight: 65.00 g.

£19.95 (£23.94 inc tax)
In stock
Overview A HUB-ee wheel with a 180:1 gear reduction, 4/40 imperial mounting threads and BMS-S PCB so it has an on board motor driver and quadrature... Read More
3990 Techno Points

MicroMatch 8-Way Cable Assembly - 100mm (HUB-ee)

Part No.: 2700-590

Shipping Weight: 2.00 g.

£1.98 (£2.38 inc tax)
In stock
An 8-way pre-assemble cable assembly we use for connecting to the HUB-ee wheel   Connector Types : Micro-Match Male No. of... Read More
396 Techno Points

MicroMatch 8-Way Cable Assembly - 150mm (HUB-ee)

Part No.: 2700-591

Shipping Weight: 3.00 g.

£2.18 (£2.62 inc tax)
In stock
An 8-way pre-assemble cable assembly we use for connecting to the HUB-ee wheel   Connector Types : Micro-Match Male No. of... Read More
436 Techno Points

MicroMatch 8-Way Cable Assembly - 250mm (HUB-ee)

Part No.: 2700-592

Shipping Weight: 5.00 g.

£2.32 (£2.78 inc tax)
In stock
An 8-way pre-assemble cable assembly we use for connecting to the HUB-ee wheel   Connector Types : Micro-Match Male No. of... Read More
464 Techno Points

MicroMatch 8-Way IDC Plug (HUB-ee)

Part No.: 2700-593

Shipping Weight: 1.00 g.

£1.38 (£1.66 inc tax)
In stock
We use these IDC plugs for making up leads for the HUB-ee wheel .   CONNECTOR, MALE, 8WAY Connector Type: Wire to Board... Read More
276 Techno Points

MicroMatch 8-Way PCB Socket (HUB-ee)

Part No.: 2700-594

Shipping Weight: 1.00 g.

£1.04 (£1.25 inc tax)
In stock
We use these IDC PCB sockets when connecting the microcontroller to the HUB-ee wheel .   CONNECTOR, MALE, 8WAY Connector Type:... Read More
208 Techno Points

MicroMatch 8-Way Right Angle PCB Socket (HUB-ee)

Part No.: 2700-595

Shipping Weight: 1.00 g.

£1.11 (£1.33 inc tax)
In stock
We use these IDC PCB sockets when connecting the microcontroller to the HUB-ee wheel . CONNECTOR, MALE, 8WAY Connector Type: Wire to... Read More
222 Techno Points

HUB-ee Blank Metric Wheel

Part No.: 1453-060

Shipping Weight: 50.00 g.

£5.25 (£6.30 inc tax)
In stock
A HUB-ee wheel without any motors or electronics. These are handy for making tracked bots - use a powered HUB-ee at one end and a DUM-ee wheel at the... Read More
1050 Techno Points

HUB-ee Blank Imperial Wheel

Part No.: 1453-061

Shipping Weight: 50.00 g.

£5.25 (£6.30 inc tax)
In stock
A HUB-ee wheel without any motors or electronics. These are handy for making tracked bots - use a powered HUB-ee at one end and a DUM-ee wheel at the... Read More
1050 Techno Points

HUB-ee Spare Tyre

Part No.: 1453-064

Shipping Weight: 17.00 g.

£2.08 (£2.50 inc tax)
In stock
A spare rubber tyre for the HUB-ee 6020 wheel
416 Techno Points

HUB-ee Spare 20:1 Geared Motor

Part No.: 1453-066

Shipping Weight: 11.00 g.

£9.96 (£11.95 inc tax)
In stock
The power at the heart of the HUB-ee, these gear motors are based on the standard 12mm 'Sanyo' form factor but with a modified shaft. The shaft has a... Read More
1992 Techno Points

HUB-ee Spare 30:1 Geared Motor

Part No.: 1453-067

Shipping Weight: 11.00 g.

£9.96 (£11.95 inc tax)
In stock
The power at the heart of the HUB-ee, these gear motors are based on the standard 12mm 'Sanyo' form factor but with a modified shaft. The shaft has a... Read More
1992 Techno Points

HUB-ee Plastic Parts Set

Part No.: 1453-070

Shipping Weight: 32.00 g.

£3.29 (£3.95 inc tax)
In stock
A set of injection moulded plastic parts for the HUB-ee 6020 wheel.
658 Techno Points

HUB-ee M1.7 Spare Screws, Pack of 10

Part No.: 1453-071

Shipping Weight: 3.00 g.

£0.58 (£0.70 inc tax)
In stock
These M1.7 x 6.8mm Phillips head miniature self tapping screws are the ones that hold the HUB-ee wheels together. They can also be handy for small... Read More
116 Techno Points

HUB-ee Spare Metric Threaded Inserts, Pack of 10

Part No.: 1453-072

Shipping Weight: 12.00 g.

£1.00 (£1.20 inc tax)
In stock
These 8mm long (5mm across flats) brass spacers are used in the HUB-ee wheels to provide threads for screwing the wheels to a robot chassis. This... Read More
200 Techno Points

HUB-ee Spare Imperial Threaded Inserts, Pack of 10

Part No.: 1453-073

Shipping Weight: 12.00 g.

£1.00 (£1.20 inc tax)
In stock
These 8mm long (5mm across flats) brass spacers are used in the HUB-ee wheels to provide threads for screwing the wheels to a robot chassis. This... Read More
200 Techno Points

HUB-ee Powered Wheel Controller Board

Part No.: 1453-080

Shipping Weight: 8.00 g.

£10.46 (£12.55 inc tax)
In stock
The Basic Motor Driver - Sensor - PCB fits inside the HUB-ee and provides a Toshiba TB6583FNG motor driver IC and two reflective optical encoders. All the... Read More
2092 Techno Points

HUB-ee Mini Splitter Adaptor Board

Part No.: 1453-081

Shipping Weight: 5.00 g.

£3.90 (£4.68 inc tax)
In stock
This little board splits the HUB-ee 8 way micro-match cable two ways, allowing you to drive two wheels synchronously. The sensor lines from one... Read More
780 Techno Points

HUB-ee Four Way Sync Driver Board

Part No.: 1453-082

Shipping Weight: 14.00 g.

£7.25 (£8.70 inc tax)
In stock
This PCB lets you plug four HUB-ee wheels into one controller for synchronous drive (i.e. all the wheels plugged into this PCB will get the same... Read More
1450 Techno Points

HUB-ee Breadboard Connector / Adaptor Breakout Board

Part No.: 1453-083

Shipping Weight: 3.00 g.

£2.08 (£2.50 inc tax)
In stock
This handy PCB breaks out the 8 wires from a HUB-ee connector into a single 2.54mm (0.1") row of pins making it super easy to plug a HUB-ee wheel into a... Read More
416 Techno Points

HUB-ee Open Collector Breakout Board

Part No.: 1453-084

Shipping Weight: 3.00 g.

£3.80 (£4.56 inc tax)
In stock
This PCB breaks out the 8 wires from a HUB-ee connector into a single 0.1in row of pins, just like the standard connector breakout board, but this one... Read More
760 Techno Points

HUB-ee Prototyping Shield V1.1 Kit for Arduino

Part No.: 1453-085

Shipping Weight: 28.00 g.

£6.45 (£7.74 inc tax)
In stock
V1.1 now available with a couple of previous issues corrected. Designed to drive two HUB-ee BMD-S wheels with optional quadrature encoder... Read More
1290 Techno Points
