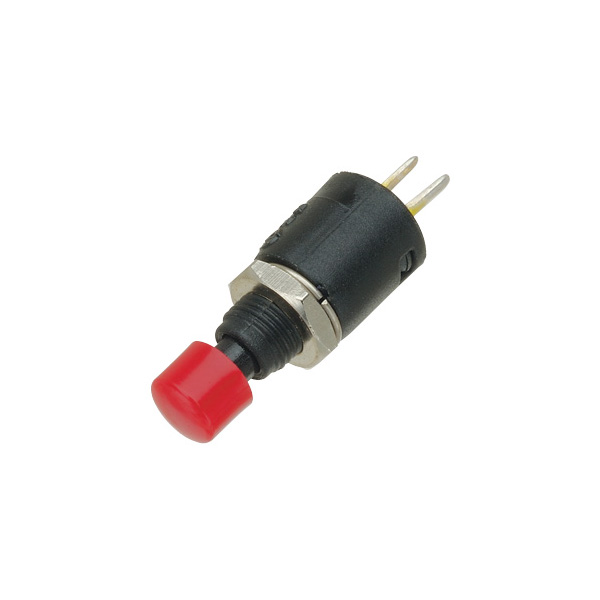

Mini Push Button Switch, Push to Make, Red

£0.81
(£0.97 UK, incl VAT)
Price in points: 162 points
1613-061
2 g
In Stock
+ −
Add to wish list

Miniature Momentary Push Switch, Round Red Actuator, SPST Contact, Momentary Operation, Brass Contact, Silver Plated, -20°C to +65°C Operating Temperature, Solder Lug Terminal, 5mm Actuator, 17.6mm High, Plastic Body and Chrome Locking Nut.

Voltage rating 0.5A 125V AC
Contact resistance 50mΩ max.
Insulation resistance 500V DC, 100MΩ min.
Dielectric strength 1000V AC, 1 minute
Circuit SPST momentary push to make
Mount hole 5.2mm
Panel thickness 4mm max.
