950D30001 RE 385 Metal Geared Motor 3000:1

£18.23
(£21.88 UK, incl VAT)
Price in points: 3646 points
1450-106
168 g
In Stock
+ −
Add to wish list

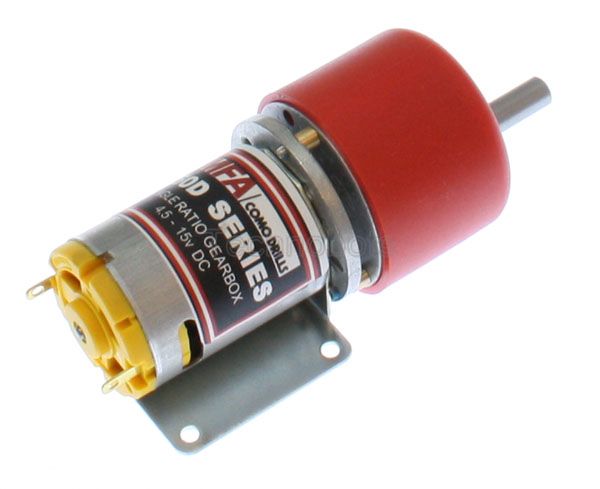

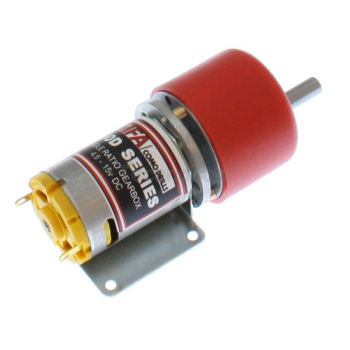

MFA Como Drills 950D30001

Output rpm at:

4.5V = 1.5
6V = 2
9V = 3
12V = 4
15V = 5
Output theoretical torque (g/cm) at 12V, max efficiency = 195900, stall torque 1252800



1450-100 to 106 Motor Performance (Note: 1450-107 to 113 Similar)
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
12 0.155 0 11000   No Load
12 0.837 65.3 9821 61.85 max 6.21
12   417.6 Stall 0   0
